80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine

China 80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine supplier
80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine supplier 80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine supplier 80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine supplier

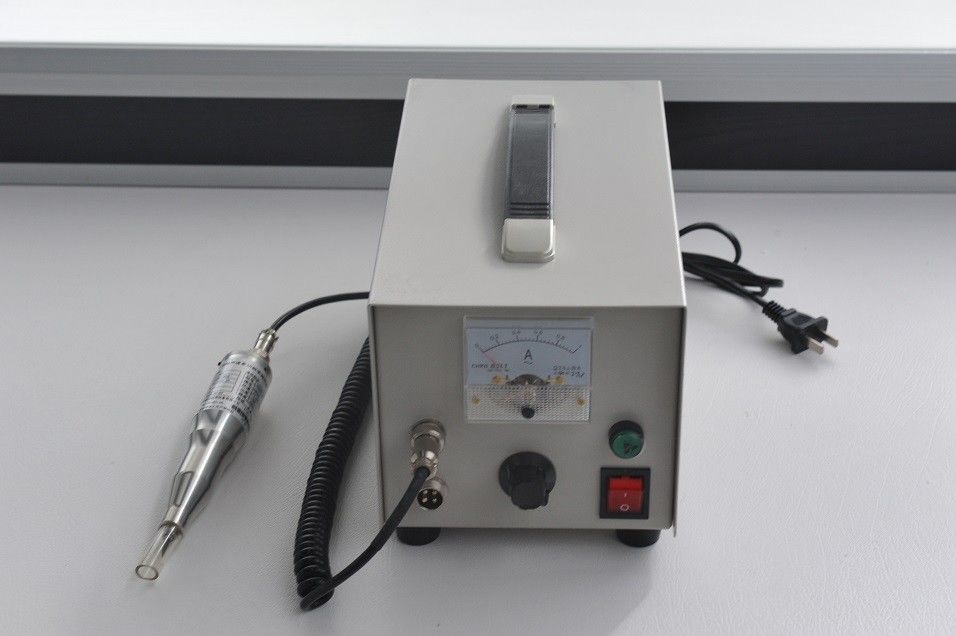

Large Image :  80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: BV
Model Number: HS-ASA2000B

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: 2000W Ultrasonic Generator For Ultrasonic Sealing Or Cutting Machine , Ease-of-use Frequency: 40Khz
Output Power: 80W Voltage: 220V 50/60Hz
Working Type: Intermittent Net Weight: 12kgs



80w 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine



Description:

The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.

Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.





Specifications:



Model

HS-ASA2000B

Frequency

40khz

Output power

80watt

Frequency tuning method

Intermittent

Voltage

220V 50/60HZ

Net weight

12kgs

Temperature

≤300℃

Moisture

≤85%RH


Competitive Advantage:

★ The use of high-quality electronic components assembly.
★ Advanced and reliable protection circuit makes the reliability is greatly improved.
★ FM and frequency automatic compensation, frequency of the digital display.
★ Frequency deviation, working current two meter indication and protection function.
★ According to the customer request interface plug.
★ Has the advantages of simple structure, easy to repair, cheap.


Comparison:





Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement





WHY CHOOSE ALTRASONIC ?



1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.



80w 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine



80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine80W 220V Ultrasonic Power Supply For Ultrasonic Sealing / Cutting Machine
