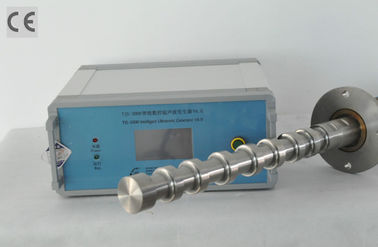

1500W Ultrasonic Industrial Homogenizer For Chinese Herb Extraction System

China 1500W Ultrasonic Industrial Homogenizer For Chinese Herb Extraction System supplier
1500W Ultrasonic Industrial Homogenizer For Chinese Herb Extraction System supplier 1500W Ultrasonic Industrial Homogenizer For Chinese Herb Extraction System supplier 1500W Ultrasonic Industrial Homogenizer For Chinese Herb Extraction System supplier

Large Image :  1500W Ultrasonic Industrial Homogenizer For Chinese Herb Extraction System

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSS57B-ZB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 1500W Weight: 35Kg

1500W Ultrasonic Industrial Homogenizer For Chinese Herb Extraction System

Specifications:


Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy




The Principle of ultrasonic extraction processor:


Ultrasound of the transesterification reaction mechanism is based on cavitation.
In the ultrasonic irradiation, the liquid flow generated thousands of tiny bubbles, these tiny air bubbles vibrate in the effect of sound field, when the sound pressure reaches a certain value, the bubble rapidly growth, then bubbles burst and generated the burst wave, so that atmospheric pressure is generated around the thousands.
Radiation input energy is converted into frictional, waves and cavitation, cavitation bubbles burst of negative pressure can produce intense local high temperature ( about 5000K) and high pressure ( about 100Mpa), accompanied by a huge cooling rate ( greater than 109K / S) and the liquid jet stream ( about 400Km / h), and the agitation caused by the pressure of liquid can overcome the adhesion force and the adhesive force to the reaction system in a very short period of time to achieve better extraction.



Main Functions:



1. Save mixing time 20%~60%
2. Lower temps 30%~60%(30 degrees C)
3. easily to do installation
4. operation in high efficience
5. Extraction of the herb and triditional medicine plants effectively
6. Eigital generator surpporting the system; searching frequency automatically







Other Applications:





  1. Disruption of cells, bacteria and tissues,
  2. Adjustment of ribosome,
  3. Cutting of actinomycetes and fungal threads,
  4. Acceleration of a chemical reaction,
  5. Extraction of special components by disruption of tissue fragments,
  6. Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.).



WHY CHOOSE ALTRASONIC ?





  1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.



Chinese Herb Extraction system , ultrasonic sonochemistry , 1500W Plant Extraction
