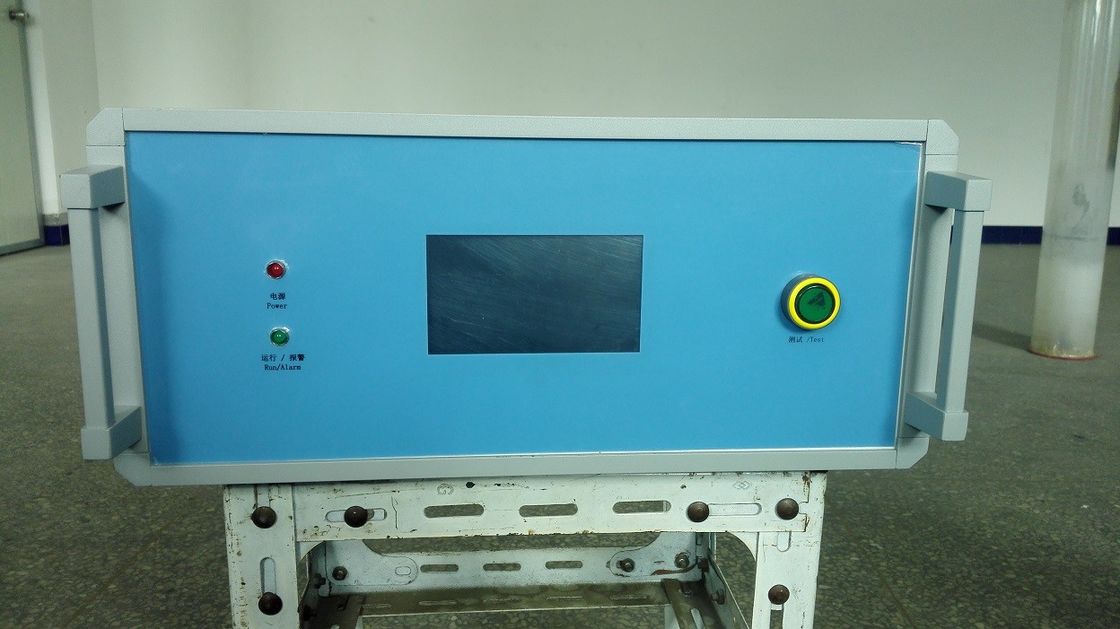

Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator

Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator
Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator

Large Image :  Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: BV
Model Number: HS-ASDV6.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator

Description
Product Name: High Power , Digital Ultrasonic Power Supply Frequency: 15Khz-60Khz
Frequency Tuning Method: Auto Tuning Output Power: 100W-3000W
Voltage: 220V Capacitance: 500-30000PF
Power Adjusting Method: 30%-99% Net Weight: 11kgs
High Light:

ultrasonic generator

,

ultrasound power supply



Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator



Description:

The principle of ultrasonic welding by the ultrasonic digital generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.

Applications:


Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.

Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.

Specifications:



Model

HS-ASDV6.0

Frequency

15khz-60Khz

Output power

100-3000watt

Frequency tuning method

Auto tuning

Automatic frequency adjustment range

±2

Power adjustable

30%-99%

Frequency adjustable

10%-99%

Net weight

11kgs

Capacitance

500-30000PF


Competitive Advantage:



1. High stability: All-digital integrated circuits, use of US imports of processors interference, simplify the hardware structure, improving the reliability of the system.

2. Automatic frequency tracking.

3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4. Amplitude stepless adjustment: Amplitude setting range from 10% to 100%.

5. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of function prompts until technician troubleshooting.

6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7. Two kinds of welding mode: switch back and forth, so that a higher precision welding, soldering and better results.


Comparison:




Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement

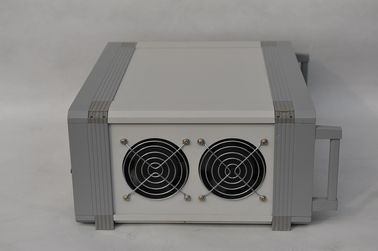

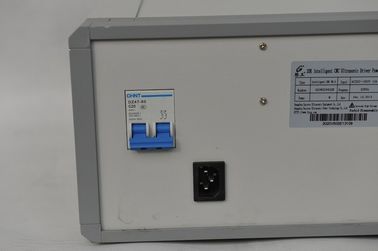

Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator



Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator 0



Digital Ultrasonic Power Supply Continuous Process Controlled , High Power Generator 1
