Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude

Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude
Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude

Large Image :  Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSBCJ20
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month

Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude

Description
Product Name: Ultrasonic Converter Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 19-21 Nf
Power: 4000watt Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 6 Pcs
Material: Titanium, Aluminum Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
High Light:

ultrasound transducer

,

ultrasonic transducers

Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude



Specifications:



Model

HSBCJ20

Frequency

20 khz

Output power

4000 watt

Joint bolt

1/2-20 UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

6 pcs

Capacitance

19-21 nf

Amplitude

20 um

Application

welding machine





Description:



The 2000 Watt 20 KHz Ultrasonic Konverter Direct replacement for the Branson CJ-20 (101-135-059) that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Applied Range:

Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
for use with all 20KHz 2000 and 2000X actuator and IW systems.



Competitive Advantage:



1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.





Industrial Application :



20 kHz Subsitution For Branson Ultrasonic Konverter CJ - 20 , Part No 101-135-047

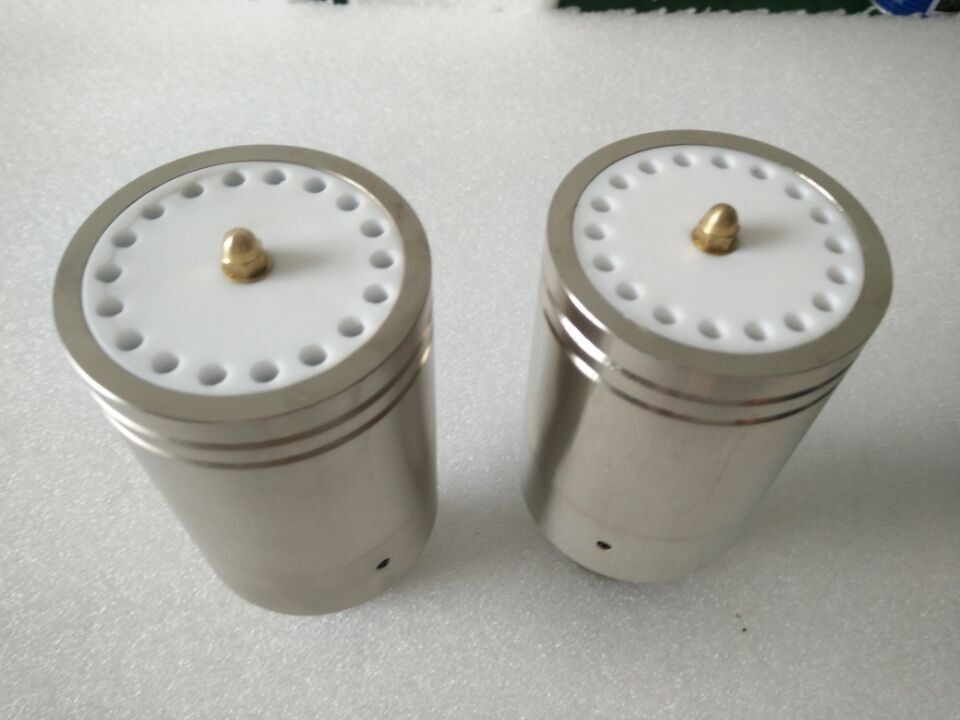

Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude 0

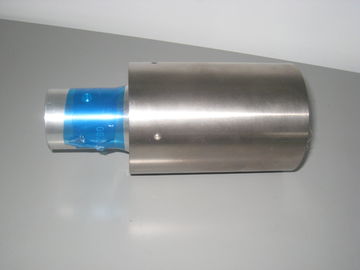

Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude 1

Aluminum Piezoelectric Ceramic Ultrasonic Welding Transducer 20 Um Amplitude 2
