28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial

28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial
28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial 28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial 28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial

Large Image :  28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PT28-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial

Description
Product Name: 28 KHz Industrial Portable Ultrasonic Spot Welding Machine For Electronic Component Frequency: 28Khz±1 KHz
Frequency Tuning Method: Auto Tuning Power: 300W

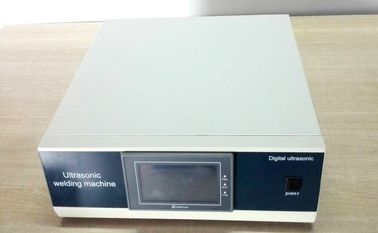

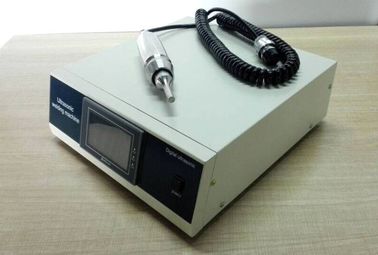

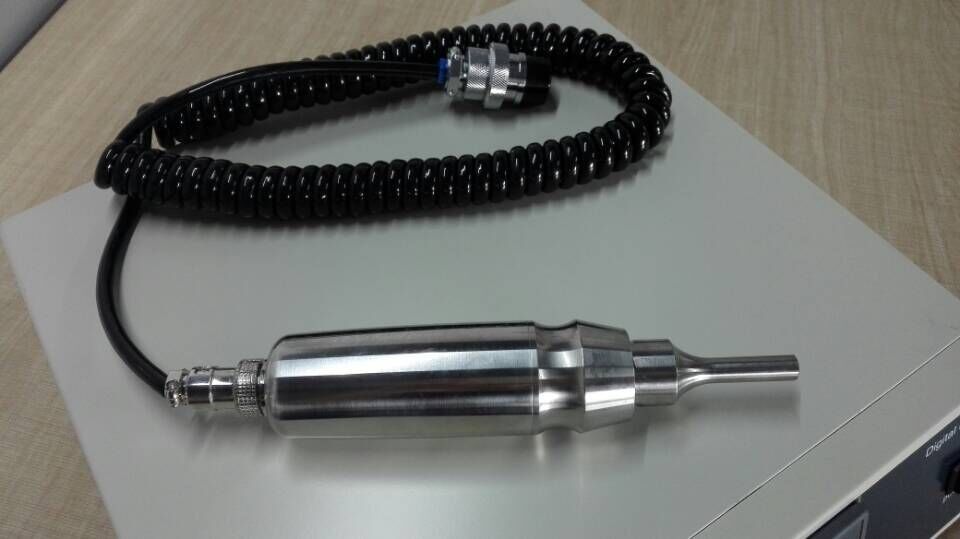

Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Horn: Working Surface Diameter 9-10mm, Steel Material
Welding Type: Hand Held Operation Or Mounting The Machine Net Weight: 10kgs
High Light:

portable spot welding machine

,

sonic welding machine



28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial



Specifications:





Gun Type

Cylinder Type

Model

HS-35G

 HSH-28G

 HS-28G

HS-20G

 HS-28C

 HS-28C

HS-28C

Frequency

35k

28k

28k

20k

28k

28k

28k

Power

700

300&500

400&700

900

300&500

400&700

500&800

Horn

≤10mm

≤10mm

≤12mm

≤13mm

≤8mm

≤12mm

≤12mm

Housing Diameter

51mm

64mm

40mm

45mm

60mm

Handle Size

100mm×45mm×32mm

——

——

——

Weight Without Wire and Horn

0.6kg

1.3kg

1.3kg

1.5kg

0.6kg

0.6kg

1.3kg

Digital generator

Analog generator



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



Description:



Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K, 30K three different frequencies. Can be different for the following purposes;

Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic
work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.

Ultrasonic welding: the use of ultrasound machine small welding head, the two pieces of plastic products into multi-point welding, or welding the first row of teeth on a direct pressure on the two plastic
work piece, so as to achieve the effect of ultrasonic welding.

Portable Ultrasonic Plastic Spot welding gun principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.



Applications In Electronic Component:



Electronic upgrading of products, welding requirements for plastic parts is higher and higher.And ultrasonic welding technology with environmental protection, energy saving, security, and the advantages of without adjuvant, adapt to the high demand of electrical and electronic industry.Application of ultrasonic welding technology of electronic equipment and accessories are: battery shell, chargers, valve control type sealed lead-acid battery maintenance, 3 inches floppy disk, U disk, SD card, CF card, USB connector, video, computer, digital watches, mobile phones, MP3, disk, mobile phone battery, charger, mobile phone shell, setting device, switch socket, prepaid water meter meter, communications equipment, cordless phones, mobile phone accessories, following from bluetooth, etc.



Competitive Advantage:



Rapid sonotrode exchange

High quality, heavy duty aluminum housing

High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

Timer-controlled air cooling as an option

Mobile – can be transported by handle on the generator case



28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial



28 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial 028 Khz Ultrasonic Electric Spot Welding Machine , Small Spot Welder Industrial 1
