High Power Ultrasonic Plastic Welding Machines 9 - 10 MM Diameter Working Surface

China High Power Ultrasonic Plastic Welding Machines 9 - 10 MM Diameter Working Surface supplier
High Power Ultrasonic Plastic Welding Machines 9 - 10 MM Diameter Working Surface supplier High Power Ultrasonic Plastic Welding Machines 9 - 10 MM Diameter Working Surface supplier High Power Ultrasonic Plastic Welding Machines 9 - 10 MM Diameter Working Surface supplier

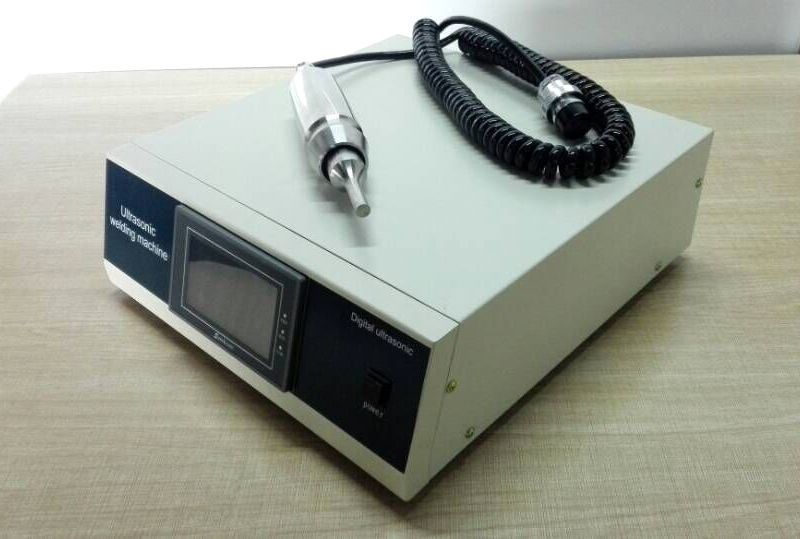

Large Image :  High Power Ultrasonic Plastic Welding Machines 9 - 10 MM Diameter Working Surface

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PT30-D

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: High Power Portable Ultrasonic Spot Welding Machine / Equipment For Plastic , Sports Industial Frequency: 30kHZ
Frequency Tuning Method: Auto Tuning Power: 500W
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Horn: Working Surface Diameter 9-10mm, Steel Material
Welding Type: Hand Held Operation Or Mounting The Machine Net Weight: 10kgs



High Power Ultrasonic Plastic Welding Machines 9 - 10 MM Diameter Working Surface

Specifications:



Model

HS-PT30-D

Frequency

30khz

Output power

500watt

Frequency tuning method

Auto tuning

Horn

Working surface diameter 9-10mm , steel material

Power adjustable

30%-99%

Net weight

10kgs

Application

Auto parts welding

Welding type

hand-held operation or mounting on the machine



Description:


Portable ultrasonic spot welding machine is an assembly technique for joining two thermoplastic components at localised points without the necessity for preformed holes or an energy director. Spot welding produces a strong structural weld and is particularly suitable for large parts, sheets of extruded or cast thermoplastic, and parts with complicated geometry and hard-to-reach joining surfaces.


Applications:

1. Plastic hardware riveting, welding, embossing, folder location technology, decorative ribbons, spot welding, rivet welding etc..
2. Electronic and electrical appliances, auto parts, clothing, packaging, textile industry, environmental protection industry, medical equipment, toy industry, communications equipment and other industries.
3. Even it has large difference physical properties between each materials, it can be a good welding. It also be suitable for metal foil, flaments, tiny device and thickness disparity, multilayer sheet metal welding.

Innovation:

1. The product design is exquisite, reasonable structure, convenient hand-held operation.
2. The digital power supply and installation of professional cooling system, enhance the stability of equipment.
3. Can be used for thermoplastic plastic welding, riveting and metal parts and plastic parts of the mosaic and pressing process. It can completely replace the process of organic melting agent paste.
Has the advantages of low energy consumption, high efficiency, no deformation, no pollution, welding firm, convenient operation etc..
4. Not only can be used to weld metal, hard plastic, can also be processed fabrics and films. According to the welding machine product riveting point size and welding requirements of portable ultrasonic welding, ultrasonic welding head replacement of different, is quick and convenient, and the cost is relatively special automobile door ultrasonic welding machine is much lower, easy to meet the needs of customers.

Competitive Advantage:

1. Fast welding speed, usually can be completed within 1 seconds.
2. High welding strength, good sealing performance, can maintain and material strength.
3. Effective energy saving, healthy environmental protection.





Gun Type

Cylinder Type

Model

HS-35G

 HS-28G

 HS-28G

HS-20G

 HS-28C

 HS-28C

HS-28C

Frequency

35k

28k

28k

20k

28k

28k

28k

Power

700

300&500

400&700

900

300&500

400&700

500&800

Horn

≤10mm

≤10mm

≤12mm

≤13mm

≤8mm

≤12mm

≤12mm

Housing Diameter

51mm

64mm

40mm

45mm

60mm

Handle Size

100mm×45mm×32mm

——

——

——

Weight Without Wire and Horn

0.6kg

1.3kg

1.3kg

1.5kg

0.6kg

0.6kg

1.3kg

Digital generator

Analog generator



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.
