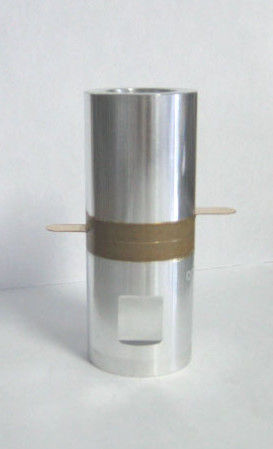

28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter

28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter
28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter 28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter 28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter

Large Image :  28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-3828-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month

28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter

Description
Product Name: Ultrasonic Welding Transducer With Welding Horn Frequency: 28 Khz
Ceramic Diameter: 38 Mm Capacitance: 7.6 -8.5 Nf, 10.5 - 12 Nf
Power: 300w , 500w , 800 W Application: Spot Welding Machine
Amplitude: 6 Um Ceramic Disc: 4 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
High Light:

high frequency ultrasonic transducer

,

portable transducer

28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter



Specifications:



Model

HS-3828-4Z

Frequency

28 khz

Output power

300w, 500w, 800 w

Joint bolt

1/2 - 20UNF

Ceramic disc Diameter

38 mm

Quantity of Ceramic discs

4 pcs

Capacitance

7.6 -8.5 nf, 10.5 - 12 nf

Amplitude

6 um

Application

welding machine



Description:



The 28 khz ultrasonic welding transducer for spot welder 300watt , 500watt , 800watt is applied to different type ultrasonic spot welding machine. And can be connected with different welding horn.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Photos :



28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter



28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter 0



28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter 1

28 Khz Ultrasonic Welding Transducer For Spot Welder , Ultrasonic Converter 2







What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
