Product Details:
|
| Product Name: | Ultrasonic Transducer For Rubber Cutting | Frequency: | 40 Khz |
|---|---|---|---|
| Ceramic Diameter: | 25 Mm | Capacitance: | 3.5 - 4 Nf , 4.1 - 5 Nf |
| Power: | 500 Watt | Application: | Rubber Cutting Machine |
| Amplitude: | 3 Um | Ceramic Disc: | 4 Pcs |
| Material Of Booster: | Titanium, Aluminum, Steel Materials Optional | Protective Housing: | Aluminum And Stainless Steel Optional |
| Joint Bolt: | M8 | ||
| High Light: | high frequency ultrasonic transducer,portable transducer |
||
Submersible Piezoelectric Ultrasonic Transducer 40 Khz High-Sound Intensity
The principle of ultrasonic cutting is completely different from the traditional sense of cutting. It uses the energy of ultrasonic, heating and melting part of the material, so as to achieve the goal of cutting material, which is the reason that ultrasonic does not require sharp edge and much pressure, and that it will not cause edge broken and damage of the material being cut.
Specifications:
|
Model |
HS-2540-4D |
|
Frequency |
40 khz |
|
Output power |
500 watt |
|
Joint bolt |
M8x1 |
|
Ceramic disc Diameter |
25 mm |
|
Quantity of Ceramic discs |
4 pcs |
|
Capacitance |
3.5 - 4 nf , 4.1 - 5 nf |
|
Amplitude |
3 um |
|
Application |
Rubber cutting machine |
Description:
The 40 KHz Submersible Piezoelectric Ultrasonic Transducer High-sound Intensity for rubber cutting machine mainly for ultrasonic rubber cutting machine, Portable cuter, ultrasonic knife and other food cutting application. It can be connected with different type cutting horn.
The basic composition of ultrasonic cutting machine are ultrasonic transducer, horn, cutting knife(tool head) and power supply. Ultrasonic drive power converts electricity into high-frequency high-voltage alternating current, transmitting to ultrasonic transducer. In fact, ultrasonic transducer serves as an energy conversion device, converting the input electrical energy into mechanical energy, that is ultrasonic. Its manifestation is transducer moving back and forth longitudinally, whose frequency is equal to the frequency of the high-frequency AC current of the drive power. one of the role of the horm is fixing the whole ultrasonic vibration system, the second is amplify the output amplitude of the transducer. On the one hand, the cutter(tool head) amplify the amplitude further, focusing ultrasonic.
On the other hand, it outputs the ultrasonic, and foucus the ultrasonic to the cutting part of the material being cut by using a similar edge of the cutting tool. The part is softening, melting immediately and the intensity is greatly decreased in the effect of great ultrasonic energy. At this point, a very small cutting force will help us reach the goal of cutting material. Ultrasonic cutting machine is similar to the conventional cutting, whose basic components are cutters and cutting board, owning two basic structure. We may put it into ultrasonic cutter cutting machine and ultrasonic cutting board cutting machine depending on the different working positions of the ultrasonic.
Ultrasonic cutter cutting machine transmit the ultrasonic power to the cutter directly, and the cutter becomes a cutter with ultrasonic. When cutting material, the materia is mainly softened and melted by the ultrasonic energy, and the blade of the cutter just play the role of kerf positioning, ultrasonic energy output and separating material. This kind of cutting is appropriate for the cutting of materials which are coarse, thick, long and inconvenient to set up cutting board material.
Ultrasonic cutting machine is suitable for: such as rubber machine output of refined raw rubber cutting, pipe cutting, frozen meat, candy, chocolate cutting, print circuit boards, industry, jewelry industry, plastics processing, food processing, printing industry, automotive industry natural fibers split(can be divided into fine lines) and synthetic fibers to dig deep(multi-layer circuit cut off) thin artificial resins cover paint(suitable for large area) all types of paper and so on.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. The cutter is doing ultrasonic vibration, the friction is very small and the material being cut is not easy to stick to the blade.
3. The part being cut is perfectly sealed, preveting loose of the material being cut.
4. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
5. One by one testing to ensure that each transducer performance are excellent.
6. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

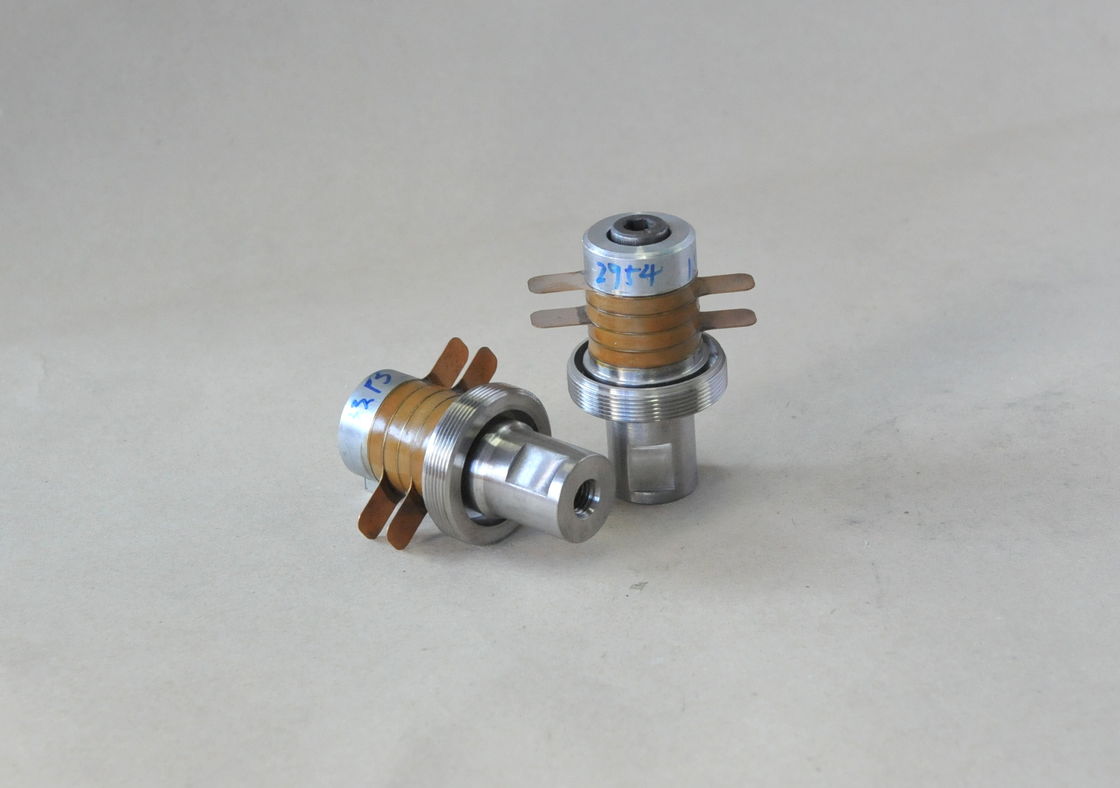

Submersible Piezoelectric Ultrasonic Transducer 40 Khz High-Sound Intensity
40 KHz Submersible Piezoelectric Ultrasonic Transducer High-sound Intensity for rubber cutting machine
