Product Details:
|
| Product Name: | Ultrasonic Transducer | Frequency: | 50 Khz |
|---|---|---|---|
| Ceramic Diameter: | 30 Mm | Capacitance: | 5.5 - 6.2 Nf |
| Power: | 200 Watt | Application: | Nebulizer Machine |
| Amplitude: | 2 Um | Ceramic Disc: | 4 Pcs |
| Material: | Titanium | Protective Housing: | Aluminum And Stainless Steel Optional |
| High Light: | ultrasonic piezoelectric transducer,portable transducer |
||

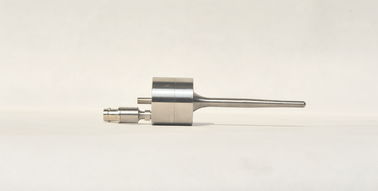

100W High Frenquency Ultrasonic Transducer 50KHz For Nebulizer Machine
Specifications:
|
Model |
HS-3050-4Z |
|
Frequency |
50 khz |
|
Output power |
200 watt |
|
Joint bolt |
M8 |
|
Ceramic disc Diameter |
30 mm |
|
Quantity of Ceramic discs |
4 pcs |
|
Capacitance |
5.5 - 6.2 nf |
|
Amplitude |
2 um |
|
Application |
Nebulizer machine |
Description:
The High Frenquency 50KHz Piezoelectric Ultrasonic Transducer 100W for nebulizer machine is applied to different type ultrasonic nebulizer machine. And can be connected with different type nozzles.
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic atomizer, Nozzle sprayer in industry processors.
Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on
We provide a wide range of high quality ultrasonic transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy. The bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.
Applied Range:
Atomize various kinds of liquid
Large atomizing volume, energy-saving, environmental protection
No plug, no abrasion
Competitive Advantage:
1. Titanium materials for longer service life.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Warranty:
We have 1 year warranty, and lifetime maintenance.
Industrial Application :

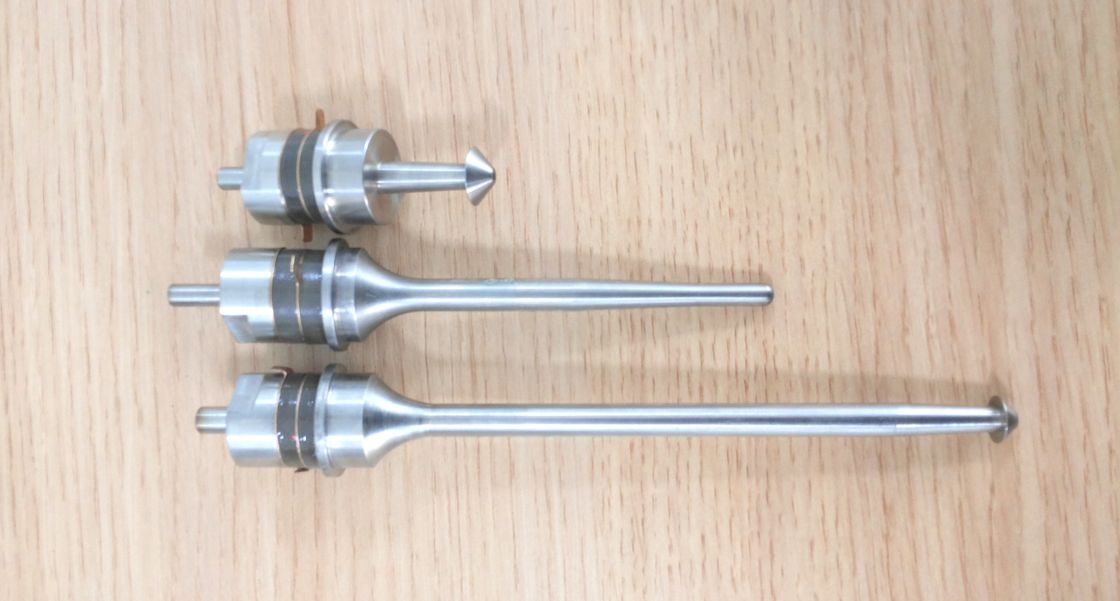

High Frenquency 50KHz Piezoelectric Ultrasonic Transducer 100W for nebulizer machine
