Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402

China Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402 supplier
Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402 supplier Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402 supplier Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402 supplier

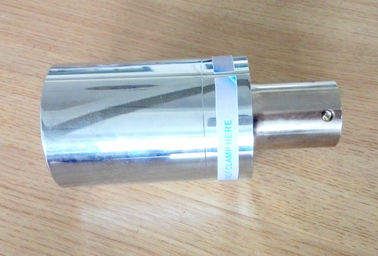

Large Image :  Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSB402

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Frequency: 20 Khz
Ceramic Diameter: 40 Mm Capacitance: 7.8 - 8.5 Nf
Power: 900 Watt Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 4 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional

Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402



Specifications:



Model

HSB402

Frequency

20 khz

Output power

900 watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

4 pcs

Capacitance

7.8 - 8.5 nf

Amplitude

20 um

Application

welding machine





Description:



The High power Large amplitude Ultrasonic Transducer For Branson 402 Welder is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Industrial Application :



Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402



Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402



Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402



Large Amplitude High Frequency Ultrasound Transducer 900W For Electric Industry Replacement Branson 402





What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
