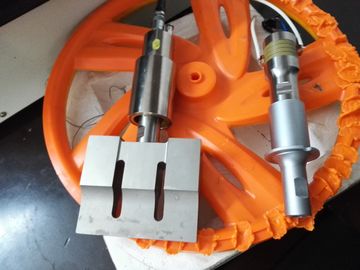

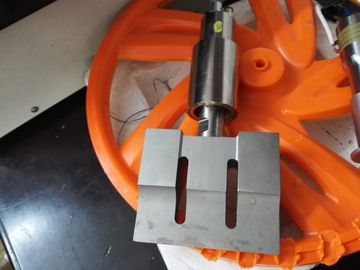

Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature

Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature
Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature

Large Image :  Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-3030-4Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month

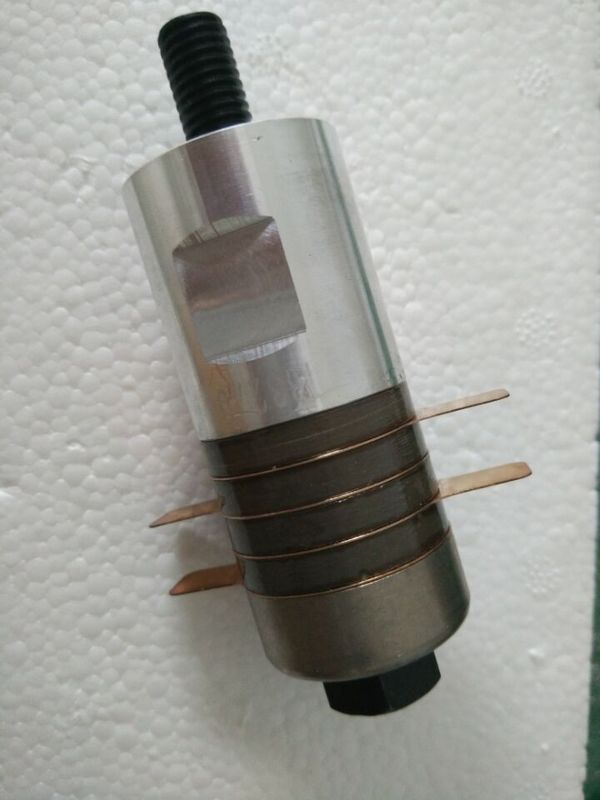

Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature

Description
Product Name: Ultrasonic Welding Transducer Joint Bolt: M10
Ceramic Diameter: 30mm Capacitance: 6.2~6.9nf
Type: Branson Type Application: Welding
High Light:

high frequency ultrasonic transducer

,

portable transducer

Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature

Specifications:



Model

HS-3030-4Z

Frequency

30khz

Output power

700watt

Joint bolt

M10

Ceramic disc Diameter

30mm

Quantity of Ceramic discs

4 pcs

Capacitance

6.2~6.9nf

Amplitude

6um

Application

Welding



Description:



Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

The ultrasonic cutter vibrates its blade with an amplitude of 10 - 70 µm in the longitudinal direction. The vibration is microscopic, so it cannot be seen. The movement repeats 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven cloths, film, composite materials in which various products are superposed, and food.

The ultrasonic cutter is composed of a "transducer" that generates vibration and an "oscillator" that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance. In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to ring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.



Applications:



Our transducer can applied in the following ultrasonic machines:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

 at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.



Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature



Food Cutting Machine High Power Ultrasound Transducer Anti-Temperature 0
