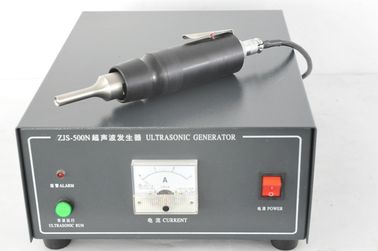

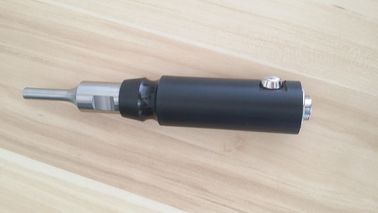

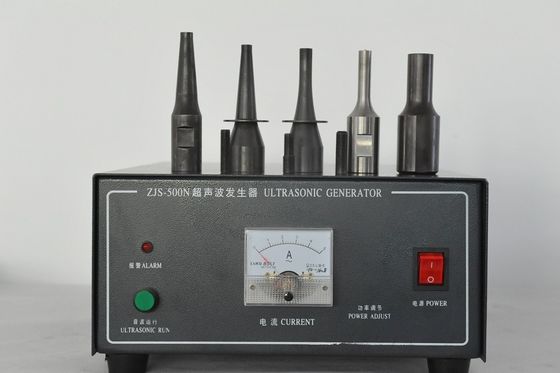

High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE

China High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE supplier
High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE supplier High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE supplier High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE supplier

Large Image :  High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD51B-CB

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: Plastic Fabric Ultrasonic Welding Machine / Portable Spot Welding Equipment , Cylinder Type Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Analog Generator
Working Type: Intermittent Shape: Cylinder Type
Frequency: 28Khz±1 KHz Power: 800W
Power Adjusting Method: ±0.15 KHz Net Weight: 10kgs

High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE



Specifications:



Model

HSD51B-CB

Frequency

28khz

Output power

800watt

Frequency

28Khz±1 KHz

Horn

Working surface diameter 9-10mm , steel material

Power adjustable

±0.15 KHz

Net weight

10kgs

Application

Auto parts welding

Welding type

hand-held operation or mounting on the machine





Description:



Portable ultrasonic spot welding machine is an assembly technique for joining two thermoplastic components at localised points without the necessity for preformed holes or an energy director. Spot welding produces a strong structural weld and is particularly suitable for large parts, sheets of extruded or cast thermoplastic, and parts with complicated geometry and hard-to-reach joining surfaces. Compare with digital generator, the advantage of analog generator is cheap, simple structure and easy to repair.





Applications:



1. Plastic hardware riveting, welding, embossing, folder location technology, decorative ribbons, spot welding, rivet welding etc..

2. Electronic and electrical appliances, auto parts, clothing, packaging, textile industry, environmental protection industry, medical equipment, toy industry, communications equipment and other industries.

3. The Cylinder Type is mostly  used by mounting on the machine. Such as in the feild of auto, by using multiple welding horn in welding door plank, fast playing board, greatly improving the production efficiency and reducing the cost. Multiple sets of ultrasonic system synchronization riveting, rapid implementation of a complete set of product riveting, and changing the welding units by automatic control to meet different welding shape.



Innovation:



1. The product design is exquisite, reasonable structure, convenient hand-held operation.

2. The digital power supply and installation of professional cooling system, enhance the stability of equipment.

3. Can be used for thermoplastic plastic welding, riveting and metal parts and plastic parts of the mosaic and pressing process. It can completely replace the process of organic melting agent paste.

Has the advantages of low energy consumption, high efficiency, no deformation, no pollution, welding firm, convenient operation etc..

4. Not only can be used to weld metal, hard plastic, can also be processed fabrics and films. According to the welding machine product riveting point size and welding requirements of portable ultrasonic welding, ultrasonic welding head replacement of different, is quick and convenient, and the cost is relatively special automobile door ultrasonic welding machine is much lower, easy to meet the needs of customers.



Competitive Advantage:



1. Fast welding speed, usually can be completed within 1 seconds.

2. High welding strength, good sealing performance, can maintain and material strength.

3. Effective energy saving, healthy environmental protection.



For Example:



In the process of automobile manufactory, the body of each a car are made more than 300 pieces of sheet metal, with more than 3000 pads assembled. Ultrasonic welders can complete the welding process better and improve work efficiency by mounting multiple ultrasonic welder equipment on the machine.



High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE



High Frequency Ultrasonic Spot Welding Machine Cylinder Type Shaped CE
