Description

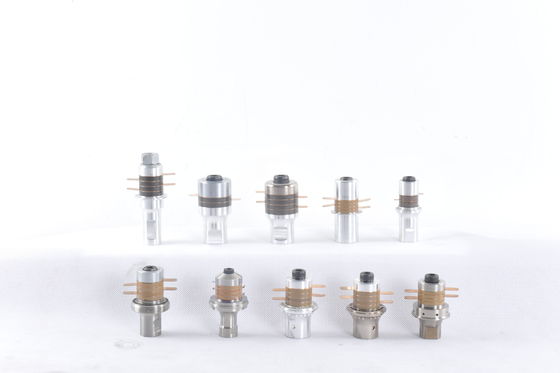

Product Name: Ultrasonic Welding Transducer Joint Bolt: 1/2-20UNF
Ceramic Diameter: 50mm Capacitance: 12~13.5 Nf ,
Type: Branson Type Application: Welding
High Light:

ultrasonic piezoelectric transducer

,

portable transducer

Industrial High Temperature Ultrasonic Transducer Branson Type 1 / 2 20UNF



Specifications:



 The columnar type NTK TYPE (stabilized power and high reliablity widely application)

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

Resistance (Ω)

Capacitance

Input power (W)

Max. Amplitude (um)













Yellow

Grey

Black





7015-4Z

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

10

6015-4Z

M20 X 1.5 or M16 X 1

60

4

15

15

8000-10000

10000-12000

12500-13500

2200

10

6015-6Z

M20 X 1.5

60

6

15

15

14000-16000

/

19500-21000

2600

10

5015-4Z

M18 X 1.5

50

4

15

15

12000-13000

13000-14300

15000-17000

1500

8

4015-4Z

M16 X 1

40

4

15

15

10000-11000

10500-11500



700

8

5520-4Z

M18 X 1

55

4

20

15

10000-11000

10500-11500

14300-20000

2000

8

5020-6Z

M18 X 1.5

50

6

20

15

18500-20000

/

22500-25000

2000

8

5020-4Z

M18 X 1.5

50

4

20

15

11000-13000

13000-15000

15000-17000

1500

8

5020-2Z

M18 X 1.5

50

2

20

20

6000-6500

6500-7000

8000-9000

800

6

4020-4Z

1/2-20UNF

40

4

20

15

9000-10000

9500-11000

/

900

6

4020-2Z

1/2-20UNF

40

2

20

25

/

4800-5500

/

500

5

5025-2Z

M12 X 1

50

2

25

25

5000-5600

/

7000-8000

500

4

3828-2Z

1/2-20UNF

38

2

28

30

3800-4300

/

/

500

3

3828-4Z

1/2-20UNF

38

4

28

30

7600-8500

/

10500-12000

800

4

3028-2Z

3/8-24UNF

30

2

28

30

2700-3100

3400-3800

/

400

3

2528-4Z

M8 X 1

25

4

28

30

3900-4300

/

/

400

4

2528-2Z

M8 X 1 or 3/8-24UNF

25

2

28

35

1950-2200

2200-2500

/

300

3

3030-4Z

M10

30

4

30

30

/

6200-6900

/

700

4

3035-2Z

3/8-24UNF

30

2

35

40

2700-3100

/

/

500

2

3035-4Z

M10 X 1

30

4

35

30

5000-6200

/

/

800

3

2535-2Z

M8 X 1

25

2

35

40

1900-2200

/

/

400

2

2540-2Z

3/8-24UNF

25

2

40

40

/

2000-2300

/

500

2

3040-4Z

M10

30

4

40

30

5500-6200

/

/

1000

2

3050-4Z

M8

30

4

50

30

5500-6200

/

/

600

2

1560-2Z

M6 X 0.75

15

2

60

60

/

/

700-800

100

1

1070-2Z

M4

10

2

70

200

/

/

350-400

100

1

The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

Resistance (Ω)

Capacitance

Input power (W)

Max. Amplitude (um)













Yellow

Grey

Black





7015-4D

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

11

6015-4D

M18 X 1.5

60

4

15

15

9000-10000

10000-11000

/

2200

11

6015-6D

1/2-20UNF

60

6

15

15

19000-20500

/

23000-25000

2600

11

5015-6D

1/2-20UNF

50

6

15

15

17000-19000

/

23000-25000

2000

11

5020- 4DS

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

/

1300

8

5020-4D

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

14500-16000

1500

8

5020-6D

1/2-20UNF

50

6

20

15

19000-21000

/

22500-25000

2000

10

4020-6D

1/2-20UNF

40

6

20

15

13500-15000

/

/

1500

10

4020-4D

1/2-20UNF

40

4

20

15

8500-9300/ 9500-10500

10000-11000

10500-11500

900

8

3020-6D

3/8-24UNF

30

6

20

15

8000-9000

/

/

600

9

3030-4D

M8 or M8 X 1

30

4

30

20

/

6200-6900

/

800

5

3535-2D

M8 X 1

35

2

35

25

/

/

4500-5000

600

9

3535-4D

M8 X 1

35

4

35

20

6600-7400

/

9000-10000

1000

4

3035-4D

1/2-20UNF

30

4

35

20

5500-6200

/

9200-10200

800

4

2535-4D

M8

25

4

35

25

3900-4300

/

/

500

4

3040-2D

M8

30

2

40

30

/

3400-3800

/

500

2

2540-4D

M8

25

4

40

30

4500-5300

/

/

500

3

2040-2D

M8

20

2

40

40

1100-1300

1150-1350

/

300

2

  PS:we can also customize depend on your requirements.



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:

The applications of ultrasonic welding are extensive and are found in many industries including electrical
and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically
 welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main
 obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and
 meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding
 thermoplastics. It is fast and easily automated with weld times often below one second and there is no
ventilation system required to remove heat or exhaust.




Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
