20Khz 4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine

China 20Khz  4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine supplier
20Khz  4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine supplier 20Khz  4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine supplier

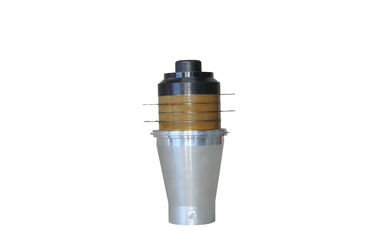

Large Image :  20Khz 4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4DS

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Joint Bolt: 1/2-20UNF
Ceramic Diameter: 50mm Capacitance: 12~13.5 Nf ,
Type: Branson Type Application: Welding

20Khz 4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine

Specifications:



Model

HS-5020-4D

Frequency

20khz

Output power

1500watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

30 mm

Quantity of Ceramic discs

6pcs

Capacitance

12~13.5 nf

Amplitude

12um

Application

Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



The applications of ultrasonic welding are extensive and are found in many industries including electrical and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding thermoplastics. It is fast and easily automated with weld times often below one second and there is no ventilation system required to remove heat or exhaust.

Applied Range
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,which can be widely used to do welding in various kinds of industries.

Applied Industries:automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing, packing, office supplies, toys, etc.
Applied Machines:Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

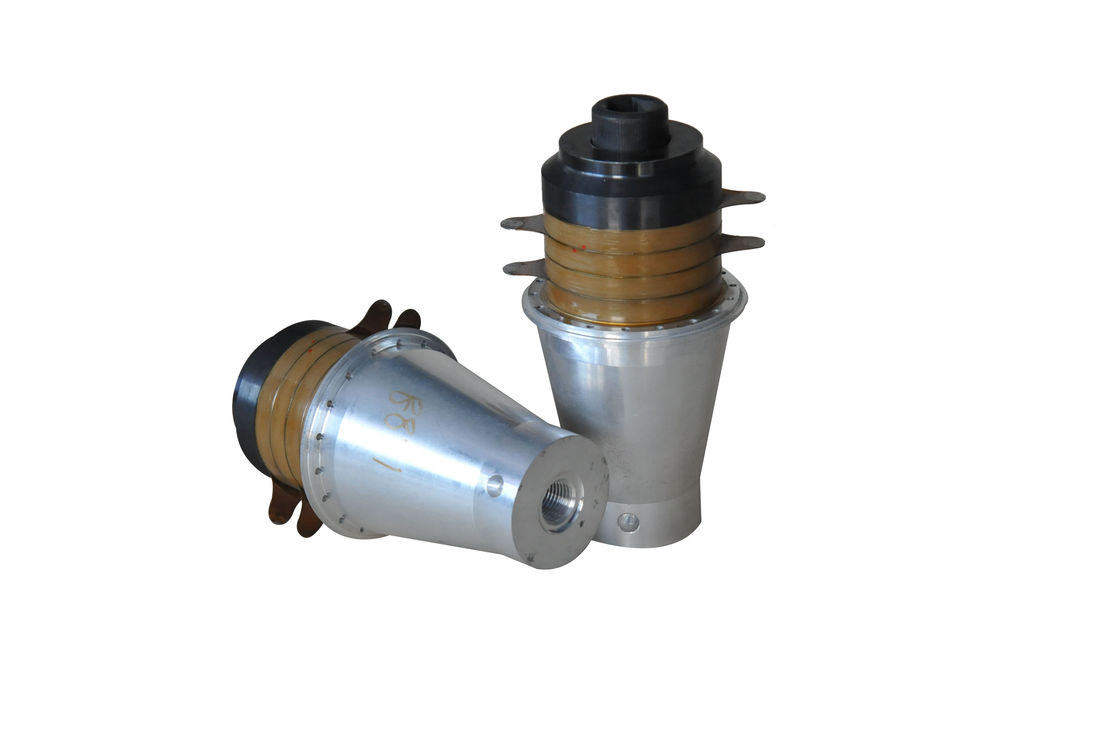

20Khz 4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine



20Khz  4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine



20Khz  4DS Ultrasonic Welding Transducer For Polishing / Drilling Machine
