Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Frequency: | 15khz |
|---|---|---|---|
| Ceramic Diameter: | 60mm | Booster Color: | Gray And Black Optional |
| Type: | Standard Type | Application: | Welding Big Plastic Samples |
| High Light: | ultrasonic piezoelectric transducer,high frequency ultrasonic transducer |
||

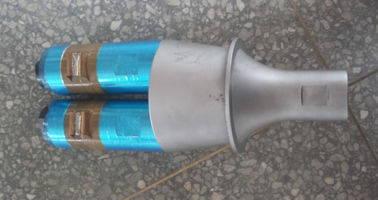

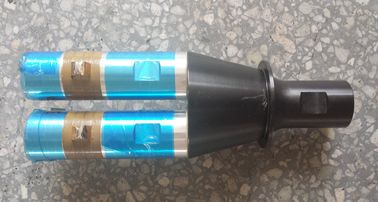

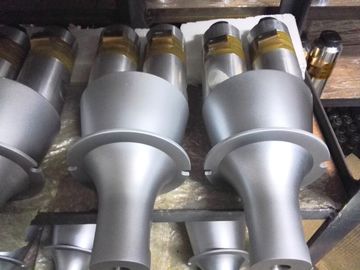

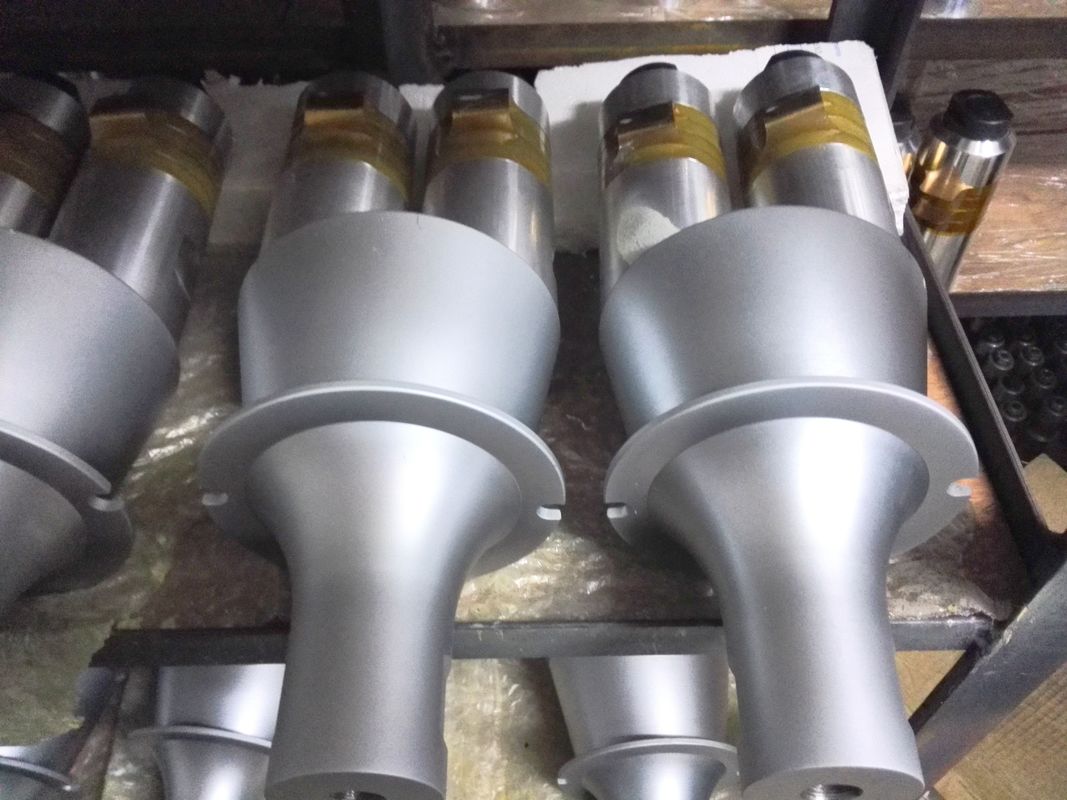

Double Horn Ultrasonic Welding Transducer 60mm Ceramic Disc Diameter 4200 watt
Specifications:
|
Model |
HS-6015-4Z double |
|
Frequency |
15khz |
|
Output power |
4200watt |
|
Joint bolt |
M20 1.5 |
|
Ceramic disc Diameter |
60 mm |
|
Quantity of Ceramic discs |
8 pcs |
|
Capacitance |
8-10 nf ,10-12nf , 12.5-13.5nf |
|
Amplitude |
30-40 um |
|
Application |
Welding |
Description:
The transducer with double horn can generator larger amplitude than single item. So it is applied to difficult welding environment requirements, including big auto parts and other big plastic samples.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.
Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.
The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.
Competitive Advantage:
1. Higher amplitude, Larger output power.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
