Product Details:
|
Product Name: | Replacement Branson 922J | Frequency: | 20Khz |
---|---|---|---|
Ceramic Diameter: | 50 Mm | Capacitance: | 20nF |
Power: | 2200W | Application: | Welding Machine |
Amplitude: | 20 Um | Ceramic Disc: | 6 Pcs |
Protective Housing: | Aluminum And Stainless Steel Optional | Warranty: | 1 Year |
High Light: | Titanium 20khz transducer,2200 Watt 20kHz Ultrasonic Transducer,20khz transducer For Replacement Branson |

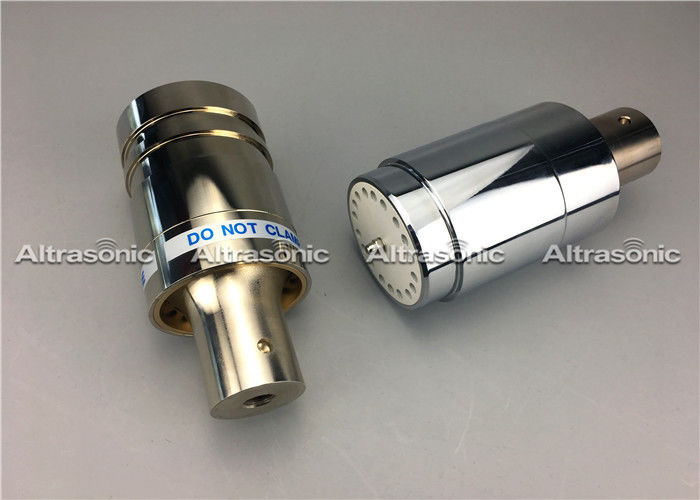

20kHz 2200Watt Titanium Ultrasonic Transducer For Replacement Branson
20kHz 2200w Titanium Ultrasonic Transducer For Replacement Branson
Specifications:
Model | HS-B922J |
Frequency | 20 khz |
Output power | 2200 watt |
Joint bolt | 1/2-20 UNF |
Ceramic disc Diameter | 50mm |
Qty of ceramic discs | 6pcs |
Capacitance | 20nF |
Amplitude | 20um |
Application | Welding machine |
Description:
The 2200 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson 922J that delivers lower cost, rugged quality and superior value.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Detailed Images:
