Product Details:
|
| Frenquency: | 20Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| High Light: | 15kHz Ultrasonic Ceramic Plate,15kHz Ultrasonic Ceramic Plate,15kHz Ultrasonic Ceramic Ring |
||

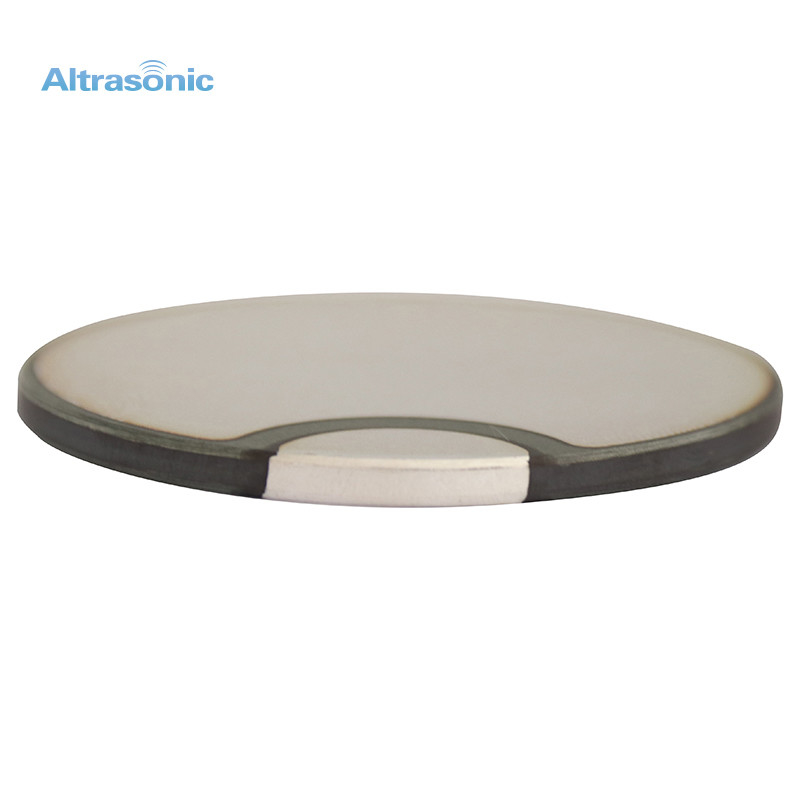

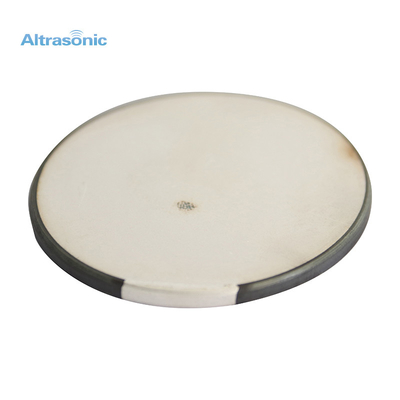

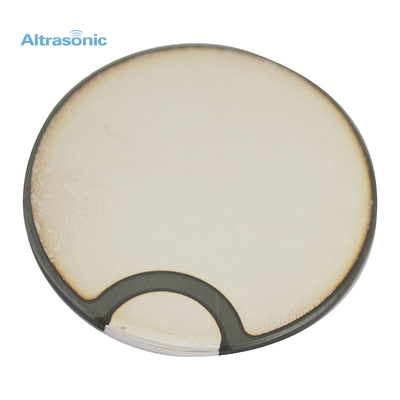

15kHz Ultrasonic Ceramic Plate Chip Ring Mixing Devices Transducer
Description:
Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
Piezoelectric ceramics have conventional sizes, and we can also customize different sizes and shapes according to customer requirements, such as circular, square, rectangular, tubular, hemispherical and so on.
Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.
Sepcification:
| Sizes(MM) OD*ID*Thickness | Capacitance (pF) | Frequency (kHz) |
Dielectric dissipation factor tgδ(%) | Coupling factor Kp (%) | Qm | |
| P43 Plate | φ20*2 | 1900 | 109 | 0.41 | 60 | 1000 |
| φ28*2 | 3700 | 78 | 0.41 | 60 | 1000 | |
| φ30*2 | 4000 | 71.8 | 0.35 | 60 | 1000 | |
| φ42.7*10 | 1700 | 50 | 0.35 | 60 | 1000 | |
| φ50*2.6 | 8300 | 44.5 | 0.35 | 60 | 1000 | |
| φ50.8*2.83 | ||||||
| φ50.8*2.6 |
Application:
As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
