Product Details:
|
Frequency: | 40khz | Blade: | 82MM |
---|---|---|---|
Material: | Titanium | Power: | 500w |
Weight (KG): | 8KG | Application: | Rubber/Plastic/Food |
High Light: | 500 Watt Ultrasonic Rubber Cutter,82MM Blade Rubber Cutting Machine,500 Watt Rubber Cutting Machine |
40khz Titanium Ultrasonic Cutting Machine Cutter Rubber Cutting
Description:
The rubber ultrasonic cutting machine uses the energy of sound waves to cut, does not require a sharp edge, nor does it require a lot of pressure, and will not cause edge collapse and damage to the material to be cut. Rubber ultrasonic cutting machine can easily cut resin, rubber, non-woven fabric, film, various overlapping composite materials and food.
Specification:
Frequency | 40Khz |
Power | 500W/800W |
Inupt | AC110-240V, 50/60Hz |
Power Controller | stepping or continuous |
Material of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
Machine Wight | 4 kg-16KG |
Accessories | foot switch, additional blade |
Cooling Device | compressed air mouth can be installed. |
Cable Length | 2M or customized |
Foot Switch | available |
Application:
1. For thermal plastic gate cutting and flush cutting.
2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For Rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.
6. For package material cutting
7. For the automotive industry cutting

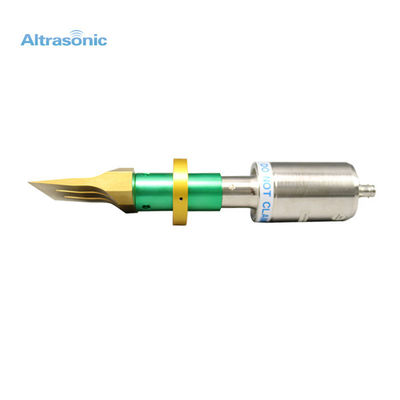

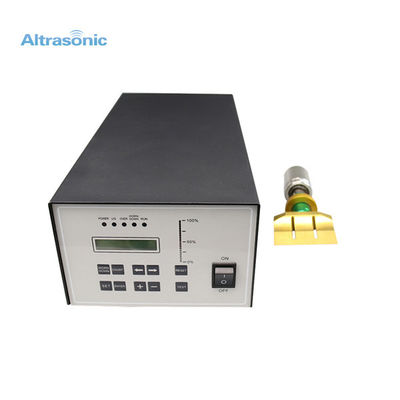

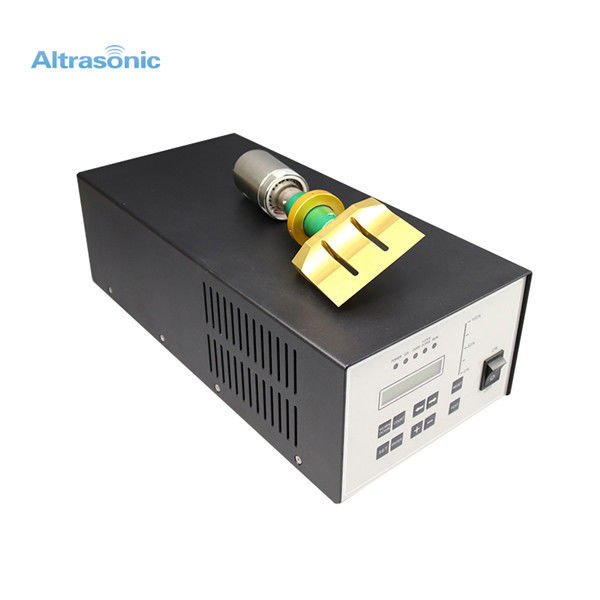

Detailed Image:
