Product Details:
|
| Frequency: | 40khz | Blade: | 82MM |
|---|---|---|---|
| Material: | Titanium | Power: | 500w |
| Weight (KG): | 8KG | Application: | Rubber/Plastic/Food |
| High Light: | Titanium Alloy Rubber Cutting Machine,Titanium Alloy Ultrasonic Rubber Cutter,500w Rubber Cutting Machine |
||
40khz Ultrasonic Cutting Machine For Rubber Cutting Titanium Alloy
Description:
The rubber ultrasonic cutting machine uses the energy of ultrasonic waves to heat and melt the material to be cut locally to achieve the purpose of cutting the material. It can easily cut resin, rubber, non-woven fabrics, films, various overlapping composite materials and food. The principle of rubber ultrasonic cutting machine is completely different from traditional pressure cutting.
Specification:
| Frequency | 40Khz |
| Power | 500W/800W |
| Inupt | AC110-240V, 50/60Hz |
| Power Controller | stepping or continuous |
| Material of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
| Machine Wight | 4 kg-16KG |
| Accessories | foot switch, additional blade |
| Cooling Device | compressed air mouth can be installed. |
| Cable Length | 2M or customized |
| Foot Switch | available |
Application:
1. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
2. For Rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
3. For tape and film cutting .
4. For paper cutting,printing industry cutting.
5. For package material cutting
6. For the automotive industry cutting
7. For thermal plastic gate cutting and flush cutting.

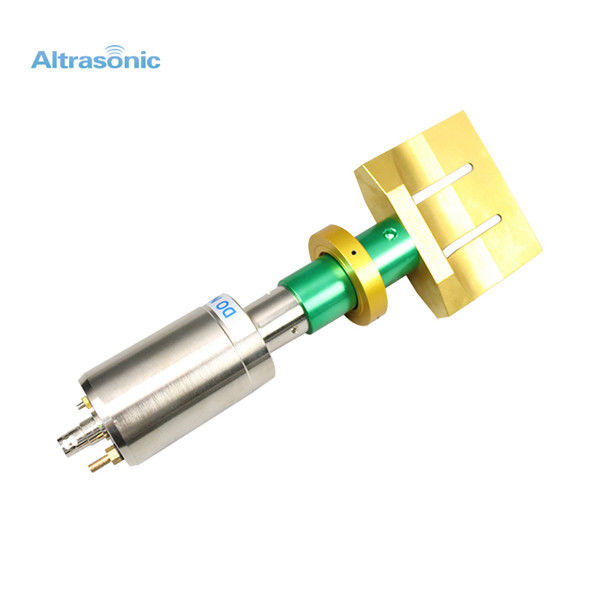

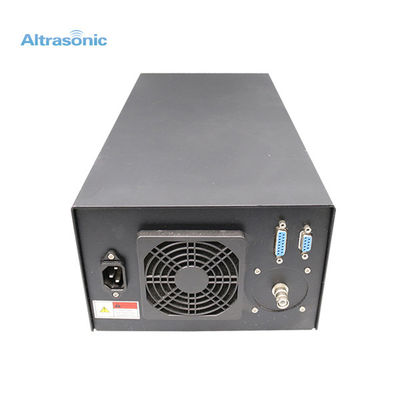

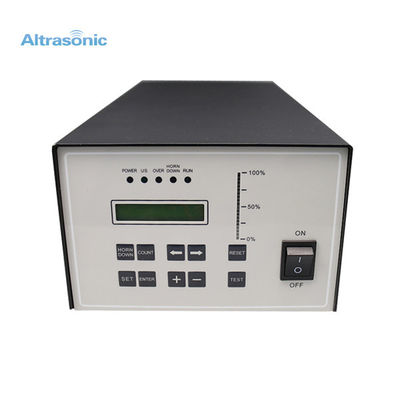

Detailed Image:
