Product Details:
|
| Frequency: | 40khz | Blade: | 82MM |
|---|---|---|---|
| Material: | Titanium | Power: | 500w |
| Weight (KG): | 8KG | Application: | Rubber/Plastic/Food |
| High Light: | Titanium Ultrasonic Rubber Cutting Machine,Titanium Material Ultrasonic Cutter,40khz Frequency Ultrasonic Cutter |
||
40khz Titanium Ultrasonic Cutting Machine For Rubber Cutting
Description:
The rubber ultrasonic cutting machine heats and melts the part of the material to be cut through the energy of the ultrasonic wave, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not need a sharp edge, nor does it require a lot of pressure, and it will not cause edge chipping and damage to the material to be cut. At the same time, due to the ultrasonic vibration of the cutting blade, the frictional resistance is very small, and the material to be cut is not easy to stick to the blade.
Specification:
| Frequency | 40Khz |
| Power | 500W/800W |
| Inupt | AC110-240V, 50/60Hz |
| Power Controller | stepping or continuous |
| Material of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
| Machine Wight | 4 kg-16KG |
| Accessories | foot switch, additional blade |
| Cooling Device | compressed air mouth can be installed. |
| Cable Length | 2M or customized |
| Foot Switch | available |
Application:
1. For thermal plastic gate cutting and flush cutting.
2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For Rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.
6. For package material cutting
7. For the automotive industry cutting

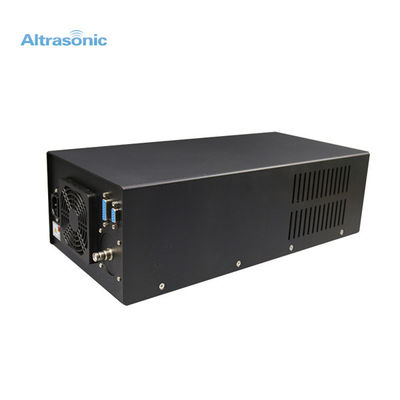

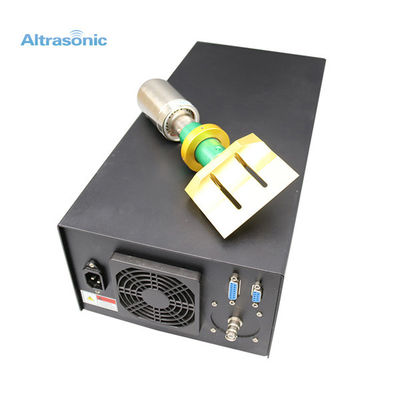

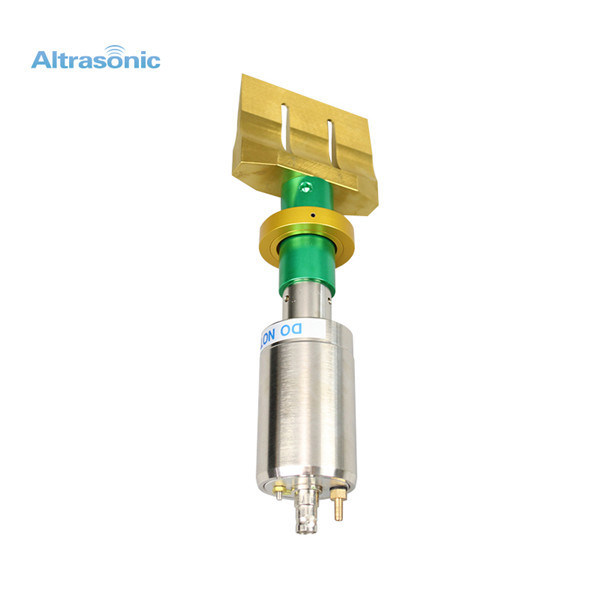

Detailed Image:
