Product Details:
|
| Frequency: | 50khz | Power: | 30w |
|---|---|---|---|
| Diameter Of The Particle: | 28um | Atomizing Volume: | 2L/H |
| Nozzle Type: | Long Nozzle | Power Consumption: | 0.01 Degrees/Kg |
| Material: | Titanium | Origin: | China |
| High Light: | Low Energy Consumption Ultrasonic Nebulizer,Spray Evenly Ultrasonic Atomizing Nozzle,Ultrasonic Nebulizer 50khz |
||
30w Low Energy Consumption Ultrasonic Atomizing Nozzle Spray Evenly
Specification:
| Frequency | 50KHz |
| Power | 30W |
| Atomization speed | Max:5L/H |
| Power Consumption | 0.01 Degrees/Kg |
| Atomization Volume | 28um |
| Spray Nozzle Shape | Long nozzle |
| Atomization Head Structure |
Cylindrical / Conical |
Introduction:
The shut-off plug driven by compressed air or electromagnetism makes the atomized medium vibrate at high speed and atomized into particles. Because the vibration frequency exceeds the sound wave, it is called an ultrasonic atomizing nozzle.
Application:
What are the main applications of ultrasonic atomizing air nozzles? Ultrasonic atomizing nozzles are generally used in laboratories and medical equipment and other places. Its atomization effect is very good, but due to the high cost and the small amount of liquid atomization, it belongs to high-precision equipment in industrial applications. Since the diameter of the mist sprayed by the ultrasonic air atomizing nozzle can reach 1-10 microns, it is very suitable for application in the field of dust suppression. The fine mist continuously sprayed by the ultrasonic air atomizing nozzle is fused with the dense mist of the same size as the dust particle size, and is also carried away by the high-speed air.

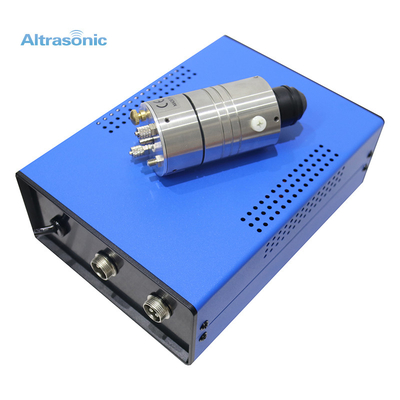

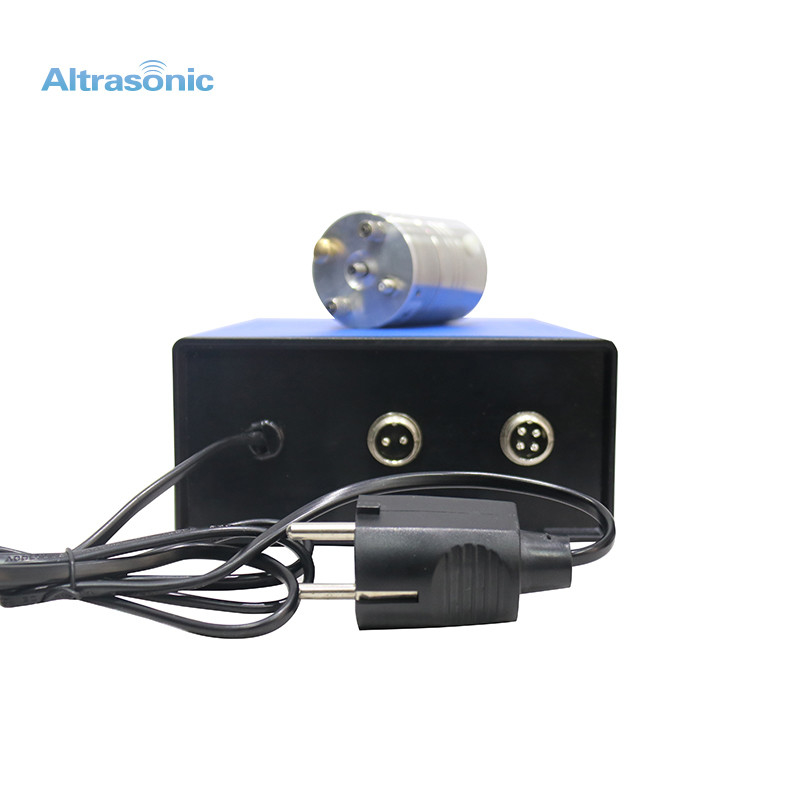

Detailed Images:
Transport and packaging:
