Product Details:
|
| Product Name: | High Pressure Atomizer Ultrasonic Nozzle Spray For Chemical Mixing 150 L/H 62μm | Frequency: | 15Khz |
|---|---|---|---|
| Atomization Volume: | 150L/H | Average Particle Diameter Of Fog: | 62um |
| Power: | 500W | Atomization Head Structure: | Horn |
| Materia: | Plastic Or Stainless Steel | Origin: | China |
| High Light: | ultrasonic atomizer,Ultrasonic atomizer nozzle |
||
15kHz High-Performance Stable Ultrasonic Atomizer Uniform Spray Aand Fine Particles
Description:
Ultrasonic atomization is the use of ultrasonic energy to disperse water or liquid to form several 5-100μm-sized particles, which are used for humidification of air, liquid mixing, granulation, spraying, metal melt powder and other purposes.

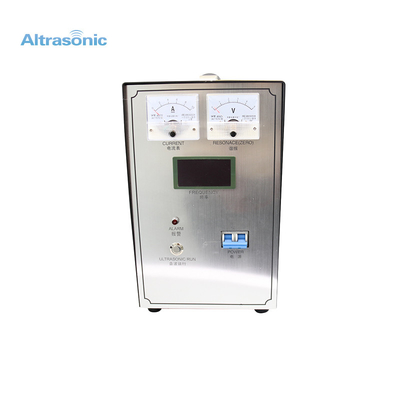

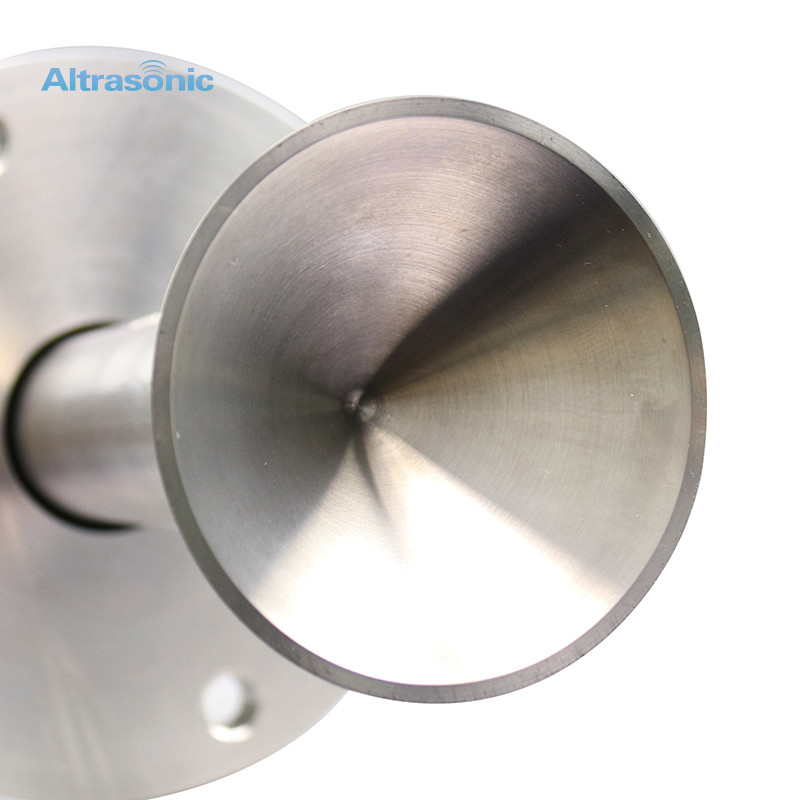

The ultrasonic atomization equipment unit is composed of a dedicated drive power supply, atomization head, horn, and ultrasonic transducer. The special drive power supply is connected to the transducer to drive the atomizing head to vibrate at high frequency to produce atomization.
Specifications:
|
Model |
HS-N60 |
HS-N50A |
HS-N50B |
HS-N50C |
HS-N40 |
HS-N30 |
HS-N20 |
HS-N15 |
|
Frequency |
60KHz |
50KHz |
50KHz |
50KHz |
40KHz |
30KHz |
20 KHz |
15 KHz |
|
Atomization Volume |
0.5L/H |
2 L/H |
2 L/H |
2 L/H |
10 L/H |
70 L/H |
100 L/H |
150 L/H |
|
Average Particle Diameter of Fog |
20um |
28um |
28um |
28um |
32um |
39um |
51um |
62um |
|
Power Consumption |
0.01 Degrees/Kg |
0.001 Degrees/Kg |
||||||
|
Atomization Head Structure |
Cylindrical |
Horn |
||||||
|
Power |
30W |
30 W |
30 W |
30 W |
60 W |
100 W |
300 W |
500 W |
|
The Application of Atomizing Media |
Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on |
|||||||
Applications:
1. Ultrasonic atomization equipment is gradually replacing traditional pressure sprayers and is used in various industries and research and development, especially in the field of micro-coating and spraying. The mist generated by the ultrasonic spray system is more accurate, easier to control and environmentally friendly.
2. Ultrasonic atomization equipment can work at high temperature, and the maximum temperature even exceeds 500 °C, so it can be used in metal powder making with simple process and high efficiency. Through the different designs of the spray head, it can be adapted to a variety of different milling requirements. It is possible to achieve everything from quick and easy small-scale milling in the laboratory to large-scale industrial milling in the production line.
Competitive Advantage:
1. It can atomize various liquids.
2. Large amount of atomization, low power consumption, energy saving and environmental protection.
3. No clogging, no wear, no noise, no pressure, no moving parts.
4. The amount of atomization can be adjusted to meet customer needs.
Picture:
