Product Details:
|
| Product Name: | Replacement Transducer For Dukane 110-3122 | Frequency: | 40khz |
|---|---|---|---|
| Ceramic Diameter: | 30 Mm | Capacitance: | 5.5-6.2nF |
| Power: | 1000W | Application: | Welding Machine |
| Amplitude: | 4 Um | Ceramic Disc: | 4pcs |
| Material Of Booster: | Titanium, Aluminum, Steel Materials Optional | Protective Housing: | Aluminum And Stainless Steel Optional |
| High Light: | Spot Welder Transducer,Ultrasonic Welding Transducer 30Khz,Plastic Welding Machine Ultrasonic Transducer |
||

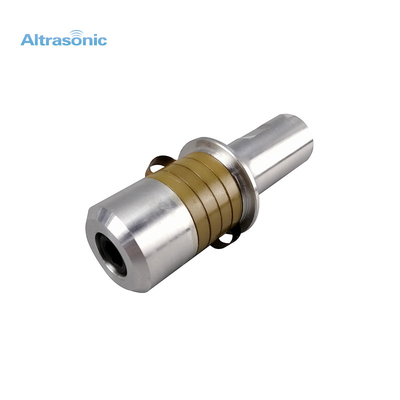

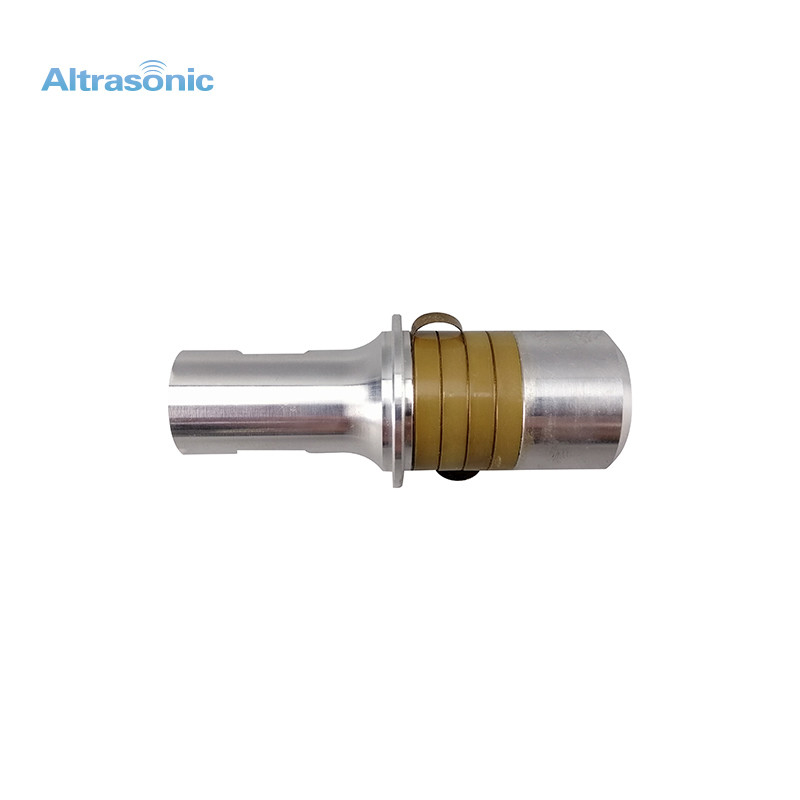

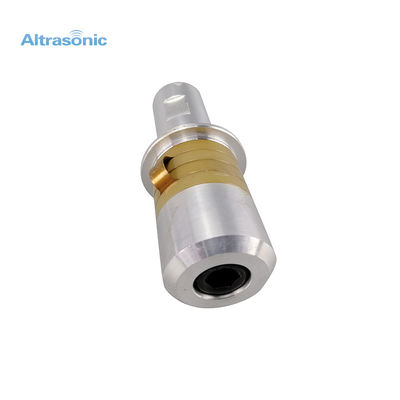

HS-3030-4D Manufacture Hot Selling Products Spot Welders Transducer For Plastic Welding Machine
HS-3030-4D hot selling products spot welders transducer for plastic welding machine
Specifications:
| Model | HS-3030-4D |
| Frequency | 30Khz |
| Output power | 1000W |
| Joint bolt | M10 UNF |
| Ceramic disc Diameter | 30 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 5.5-6.2 nF(yellow) |
| Amplitude | 4 um |
| Application | Welding |
Description:
Ultrasonic transducers convert AC into ultrasound, as well as the reverse. Ultrasonics, typically refers to piezoelectric transducers or capacitive transducers. Piezoelectric crystals change the size and shape when a voltage is applied; AC voltage makes them oscillate at the same frequency and produce ultrasonic sound. Capacitive transducers use electrostatic fields between a conductive diaphragm and a backing plate.
Systems typically use a transducer that generates sound waves in the ultrasonic range, by turning electrical energy into sound, then upon receiving the echo turn the sound waves into electrical energy which can be measured and displayed.This technology, as well, can detect approaching objects and track their positions.
In the ultrasonic industry, the whole of the transducer connected to the horn is called a vibrator.
The sound that is produced at a higher level than the human hearing range is named ultrasound. The ultrasonic transducer is one kind of sound-contributed sensors. While ultrasound begins typically at 20 kHz, most ultrasonic transducers begin at 200 kHz according to their application.
Ultrasound, which is naturally like audible sound, has far lower wavelengths and is more desirable to identify small faults.
These transducers are the main elements in sensors for flow, level measurement, and distance, as well as in biomedical, power, and other applications of ultrasound.
Advantages of Ultrasonic sensor:
➨It has sensing capability to sense all the material types.
➨This sensor is not affected due to atmospheric dust, rain, snow etc.
➨It can work in any adverse conditions.
➨It has higher sensing distance (in centimeters and inches) compare to inductive/capacitive proximity sensor types.
Warranty:
We offer the same warranty as the OEM, namely, one years one-time replacement.
Simply ship the broken unit back to arrive within one years of original shipment, and it will be replaced (one time).
