Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Ceramic Diameter: | 50mm |
|---|---|---|---|
| Type: | NTK Type | Joint Bolt: | M 12*1 |
| Capacitance: | 5~5.6nf | Application: | Welding |
| High Light: | 25Khz Ultrasonic Converter,Two Ceramics Ultrasonic Converter,2 Ceramics Ultrasonic Converter |
||
25Khz Ultrasonic Converter Two Ceramics For Welding Machine Waterproof
Description:
A transducer is a device that converts electrical energy and sound energy into each other. Used in echo sounders, Doppler logs and acoustic correlation logs. Converting electrical energy into sound energy is called a transmitting transducer; converting sound energy into electrical energy is a receiving transducer. The transmit and receive transducers are usually used separately, but one can also be shared. The main performance indicators of the transducer are: operating frequency, frequency bandwidth, electro-acoustic frequency, impedance at resonant frequency, directivity (transmission beam width) and sensitivity. According to the different physical properties and materials used, transducers can be divided into two categories: magnetostrictive transducers and electrostrictive transducers. The former applies the magnetostrictive effect of ferromagnetic materials, and is often made of nickel or nickel-iron alloy; the latter applies the electrostrictive effect and piezoelectric effect, and is often made of dielectric materials such as barium titanate ceramics and milling lead titanate ceramics. . The transducer is installed on the bottom of the ship, and its directivity can be characterized by beam width or half-spread angle.
Specifications:
| Model | HS-5025-2Z |
| Frequency | 25 Khz |
| Output power | 500 W |
| Joint bolt | M12*1 |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 2 pcs |
| Capacitance | 5~8 nF |
| Amplitude | 6 um |
| Application | Welding |
Ultrasonic Transducer introduction :
Ultrasonic transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The Ultrasonic transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Ultrasonic Transducer features :

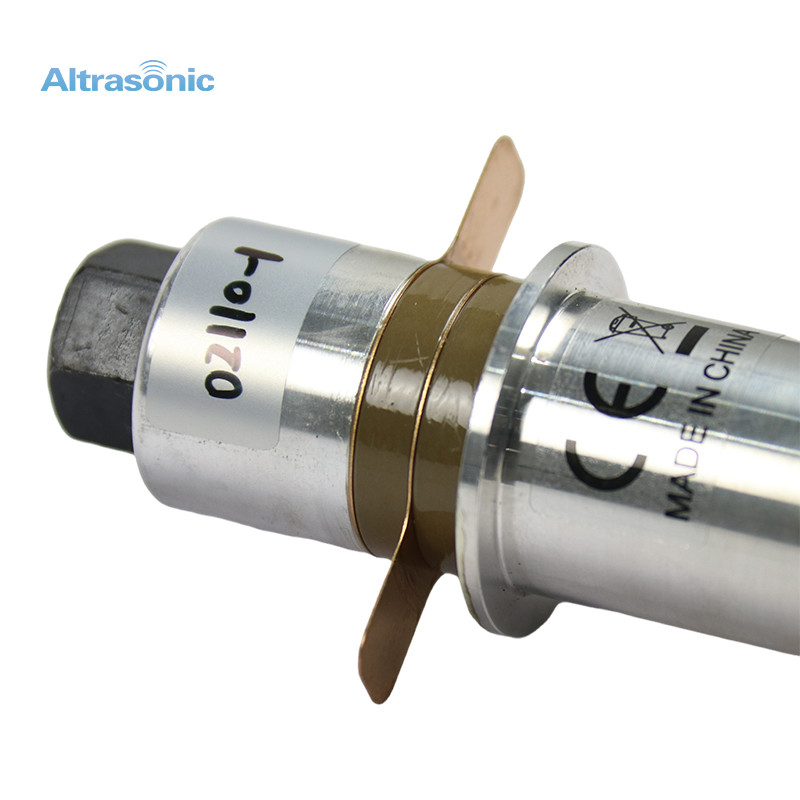

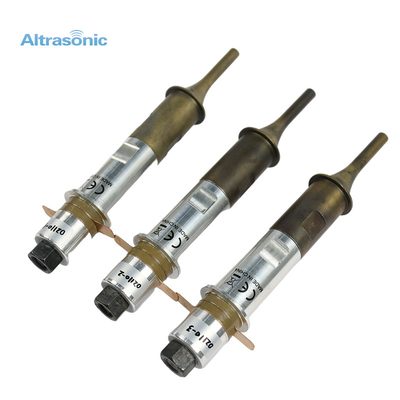

Detailed Images:
