Product Details:
|
| Product Name: | Welding Transducer | Frequency: | 20 Khz |
|---|---|---|---|
| Ceramic Diameter: | 50 Mm | Capacitance: | 11-17nF |
| Power: | 2000W | Application: | Welding Machine |
| Amplitude: | 20 Um | Material Of Booster: | Titanium, Aluminum, Steel Materials Optional |
| High Light: | ultrasonic transducer for welding,transducer ultrasonic welding |
||

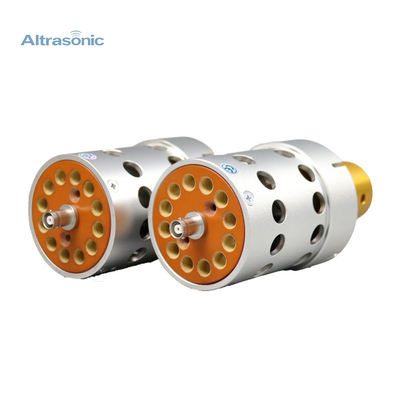

20Khz Ultrasonic Transducer High Power Dukane Replacement Converter Machine
Specifications:
| Model |
HS-41C30 |
| Frequency | 20Khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-17 nf |
| Amplitude | 20 um |
| Application | Plastic welding machine |
Description:
The 2000 Watt 20 KHz Ultrasonic TRANSDUCER Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.
Ultrasonic transducer is a device that converts electrical energy into mechanical energy. Ultrasonic transducers convert AC into ultrasound, as well as the reverse. Ultrasonics, typically refers to piezoelectric transducers or capacitive transducers. Piezoelectric crystals change the size and shape when a voltage is applied; AC voltage makes them oscillate at the same frequency and produce ultrasonic sound.
Replacement Item
| Item No | Connect Screw (Size) |
Ceramic diameter (mm) |
Qty of ceramic (PC) |
Frequency(khz) | Resistance(Ω) | Color of ceramic | Capacitance |
Input Power (W) |
| Branson CJ20 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 502 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 402 | M8*1.25 | 25 | 4 | 39.60 | 10 | Yellow | 4200 | 800 |
| Branson 4TH | M8*1.25 | 25 | 4 | 39.90 | 10 | Yellow | 4200 | 800 |
| Branson 902 | 1/2-20UNF | 40 | 4 | 19.85 | 10 | Yellow | 8000 | 1100 |
| Branson 922J | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 2200 |
| Dukane 40K | M8*1.25 | 35 | 2 | 39.80 | 5 | Gray | 3000 | 800 |
| Dukane 20K | 1/2-20UNF | 50 | 2 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3122 | 1/2-20UNF | 50 | 4 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3168 | 1/2-20UNF | 45 | 2 | 19.50 | 10 | Yellow | 4000 | 800 |
| Rinco 35K | M8*1.25 | 25 | 2 | 34.80 | 50 | Yellow | 2000 | 900 |
| Rinco 20K | M16*2 | 50 | 2 | 19.90 | 50 | Yellow | 5000 | 3000 |
| Telsonic 35K | M8*1.25 | 25 | 4 | 35.00 | 5 | Yellow | 4000 | 1200 |
| Telsonic 20K | 1/2-20UNF | 50 | 4 | 20.00 | 3 | Yellow | 10000 | 2500 |
