Product Details:
|
| Frequency: | 30khz | Voltage: | 220V / 110V |
|---|---|---|---|
| Length Of Cable: | 3M | Material Of Blade: | Steel |
| Power: | 500W | Handle: | Φ44×220 |
| Generator Type: | Digital | Warranty: | 1 Year |
| Outer Skin: | Aluminum | Certification: | CE |
| High Light: | Ultrasonic Cutting Devices 30kHz,CE Approved Ultrasonic Cutting Machine,Digital Type Ultrasonic Cutting Machine |
||
CE Approved 30kHz Ultrasonic Cutting Machine Digital Type
Specification:
| Model | HS-C30 |
| Frequency | 30KHZ |
| Output Power | 500W |
| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc；Cut blade 2pcs； 1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | steel |
Ultrasonic rubber cutting machine uses the energy of sound waves to cut. It does not require sharp cutting edges, and does not require a lot of pressure, and will not cause chipping or damage to the material being cut.t the same time, due to the ultrasonic vibration cutting blade, the friction is small, and it is not easy to stick to the blade by reducing the material. Viscous and elastic materials, frozen, such as food, cakes, rubber, etc., or inconvenient to add pressure reduction objects, are particularly effective.
Application Range:
Various textile materials and plastic sheets can be cut by ultrasound, such as natural fibers, synthetic fibers,Nylon, non-woven fabrics Sidewall, Apex and knitted fabrics can be cut by ultrasound.

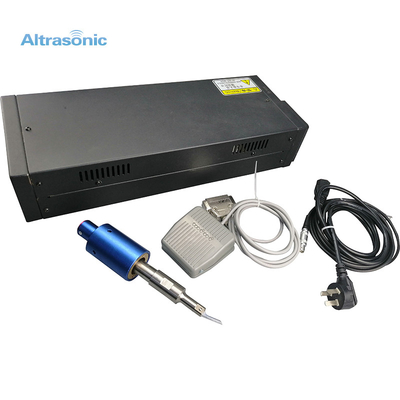

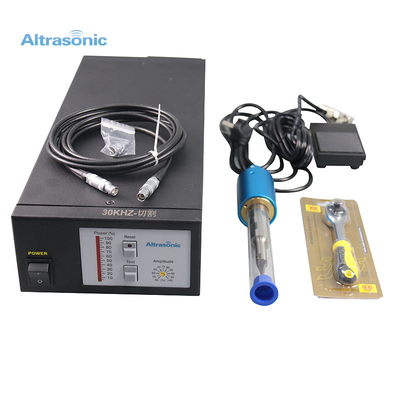

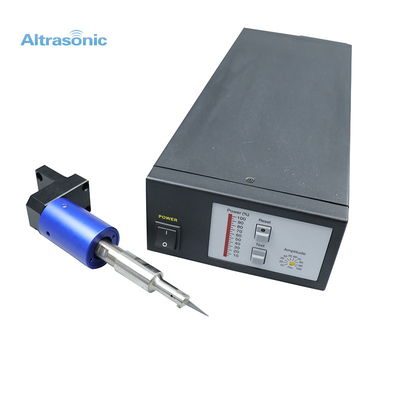

Detailed images:
