Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine | Frequency: | 35khz |
|---|---|---|---|
| Model Number: | HS-GW35 | Power: | 800W |
| Horn: | ≤10mm | Housing Diameter: | 51mm |
| Handle Size: | 100mm×45mm×32mm | Weight Without Wire And Horn: | 20kg |
| Type: | Gun Type | Application: | Automotive Parts |
| High Light: | Thermoplastic Ultrasonic Spot Welding Machine,Mini Ultrasonic Spot Welding Machine,Ultrasonic Spot Welding Machine Gun Type |
||
Mini Hand-held Ultrasonic Spot Welding Machine For Thermoplastic
Description:
The ultrasonic spot welder converts electrical energy into ultrasonic energy through an ultrasonic transducer. The energy is transmitted to the plastic workpiece through the welding head, and the joint surface of the plastic workpiece is violently rubbed and melted with tens of thousands of ultrasonic frequencies per second and a certain amplitude. . When the vibration stops, the plastic solidifies under pressure, resulting in welding on the joint surface.
Specifications:
|
Model |
HS-GW35 |
|
Frequency |
35kHz |
|
Power |
800W |
|
Generator |
Digital |
|
Horn Size |
Customizable |
|
Horn Material |
Titanium alloy |
Advantages:
1. The quality is sturdy and durable
2. High production efficiency
3. The welding is beautiful and firm
4. Environmental protection and clean
Application:
The handheld ultrasonic spot welding machine can be used for the welding, riveting, spot welding of films, fabrics, and thermoplastic products, as well as the inlay and edge pressing process between metal parts and plastic parts.

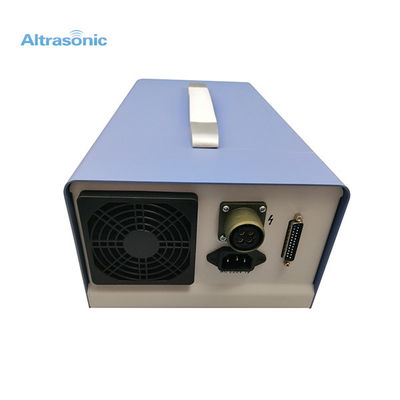

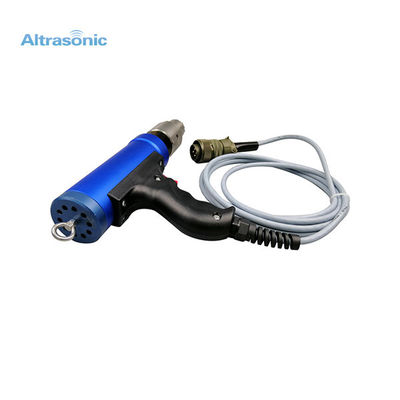

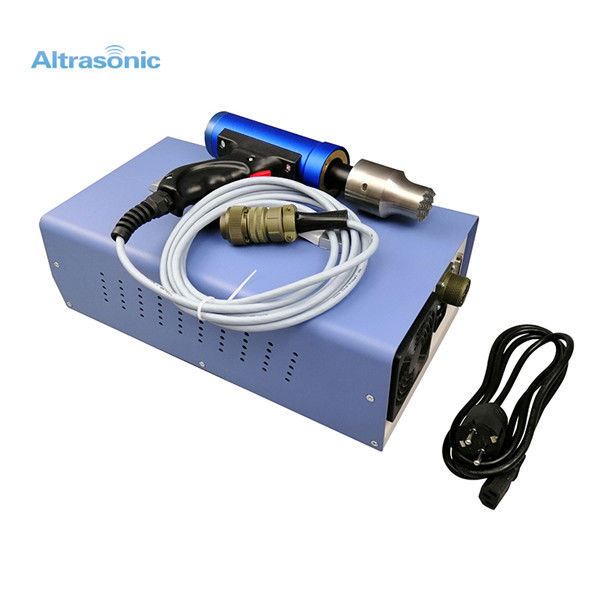

Product display:
