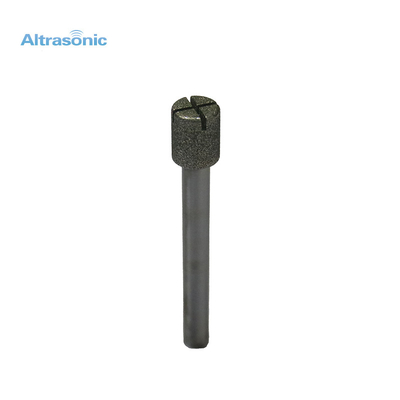

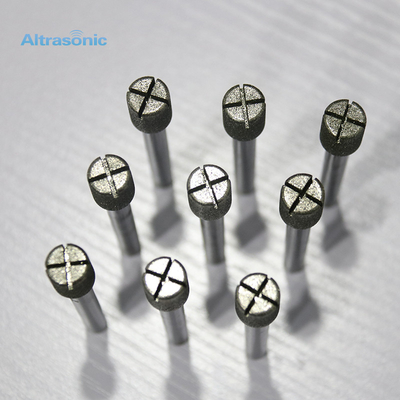

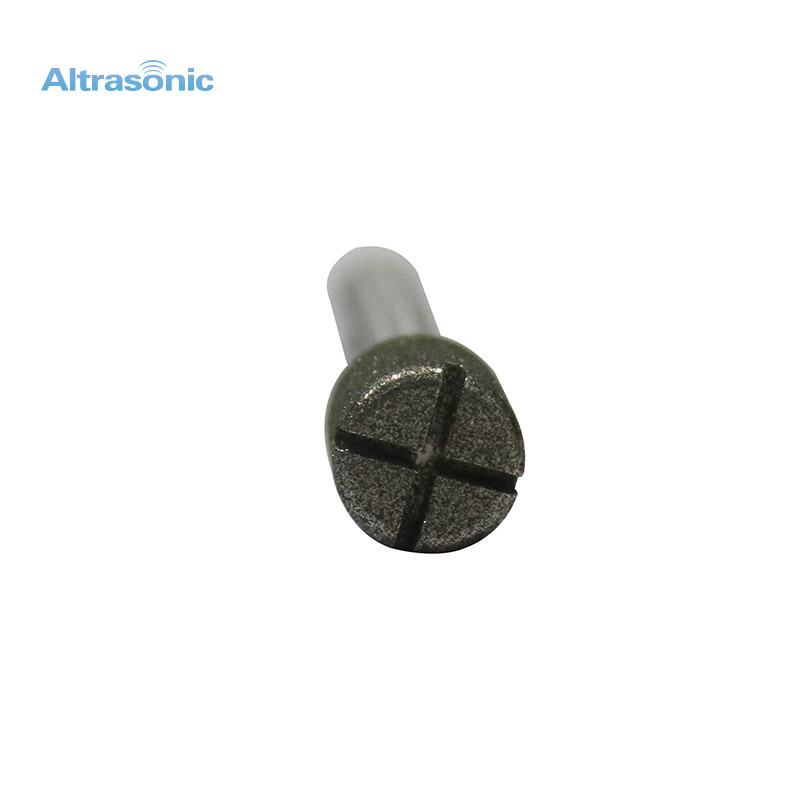

Handle Switch Ultrasonic Milling Machine Tool Head For Building Material

Handle Switch Ultrasonic Milling Machine Tool Head For Building Material
Handle Switch Ultrasonic Milling Machine Tool Head For Building Material Handle Switch Ultrasonic Milling Machine Tool Head For Building Material Handle Switch Ultrasonic Milling Machine Tool Head For Building Material

Large Image :  Handle Switch Ultrasonic Milling Machine Tool Head For Building Material

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15-30 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 200 Set per month

Handle Switch Ultrasonic Milling Machine Tool Head For Building Material

Description
Frequency: 20Khz Output Power: 1000w
Voltage: 220v Switch: Handle Or Foot Switch
Power Adjusting: Step Or Continuous Working Time Control: 24 Hours
Weight: 30KG ( Determined By The Size Of The Horn ) Generator: Digital Generator
High Light:

Digital Generator Ultrasonic Milling Machine

,

Handle Switch Ultrasonic Drilling Machine

,

Building Material Ultrasonic Milling Machine

High Quality Ultrasonic Drilling Milling Machine Tool Head For Building Material Shops



Specification:



Frequency 20 Khz
Output Power 1000 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 30 KG ( Determined by the size of the horn )
Generator Digital Generator



Competitive Advantages:

  • Capability to machine such fragile materials as silica since there is no contact between the tool and the part
  • Capability to machine such hard materials as boron carbide, silicon carbide, silicon nitride
  • Machining of such peculiar shapes as square or hexagonal holes even in very small dimensions - less than 1 mm
  • Drilling of long holes - ratio diameter-to-length greater than 10 for small diameters
  • This machining technique also makes it possible to carry out usual drilling operations of small diameter holes - about 0.4 mm.

Handle Switch Ultrasonic Milling Machine Tool Head For Building Material 0



Compared with high-speed hard cutting, it does not require high machine tool rigidity and does not damage the metallographic structure of the workpiece surface. In the finish machining of curved contour parts, it is possible to use CNC lathes, machining centers, etc. for profiling machining, which can save the expensive purchase cost of CNC grinders.





Applications:


Milling of difficult-to-machine materials: such as heat-resistant steel, titanium alloy, constant elastic alloy, high-temperature alloy, stainless steel, chilled cast iron, engineering ceramics, composite materials and granite, etc. Using this kind of vibration cutting, precision machining can be performed on ordinary machine tools. The geometric tolerances such as roundness, cylindricity, flatness, parallelism, and straightness are mainly determined by the accuracy of the machine tool spindle and guide rail, and can reach close to zero error. It is possible to replace grinding by car, reaming by drilling, and grinding by milling.







Transport and Packaging:



Handle Switch Ultrasonic Milling Machine Tool Head For Building Material 1

Payment:

Handle Switch Ultrasonic Milling Machine Tool Head For Building Material 2
