Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials

Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials
Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials

Large Image :  Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GW35
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials

Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 35khz
Model Number: HS-GW35 Power: 800W
Horn: ≤10mm Housing Diameter: 51mm
Handle Size: 100mm×45mm×32mm Weight Without Wire And Horn: 20kg
Type: Gun Type Application: Automotive Parts
High Light:

800W Portable Spot Welding Machine

,

Portable Spot Welding Machine 35khz

,

Gun Type Ultrasonic Spot Welding Machine

Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials



Description:



Ultrasonic hand-held spot welding machine actually belongs to the category of ultrasonic welding. It uses ultrasonic waves to generate high-frequency vibration to weld two materials, metal or plastic, together.



Specifications:



Customized Ultrasonic Portable Spot Welding Machine



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.



Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



Detailed Images:

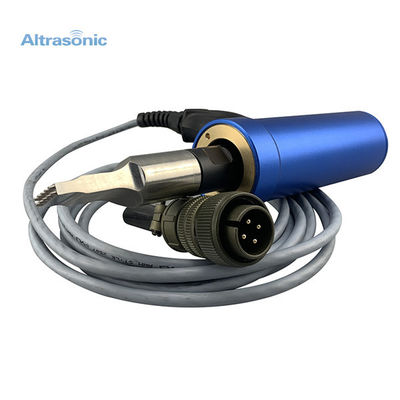

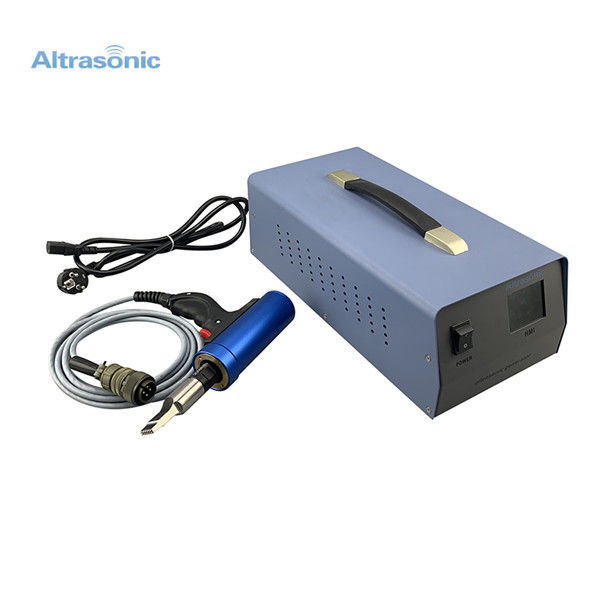

Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials 1

Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials 2



Application range:



Plastic hardware riveting, spot welding, embossing, folder positioning and other processes, decoration, ribbon flower spot welding, riveting, etc.

Applicable industries: electronic appliances, auto parts, clothing packaging, textile industry, toy industry, communication equipment and other industries.


Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials 3



Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials 4





Competitive Advantages:



Rapid sonotrode exchange

High quality, heavy duty aluminum housing

High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

Timer-controlled air cooling as an option

Mobile – can be transported by handle on the generator case



Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials 5Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials 6Ultrasonic Portable Spot Welding Machine 35khz For Plastic Materials 7
