Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm

Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm
Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm
Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm

Large Image :  Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: 58*30*29cm
Delivery Time: 7 workdays
Payment Terms: T/T, Western Unionm,paypal
Supply Ability: 5000sets/month

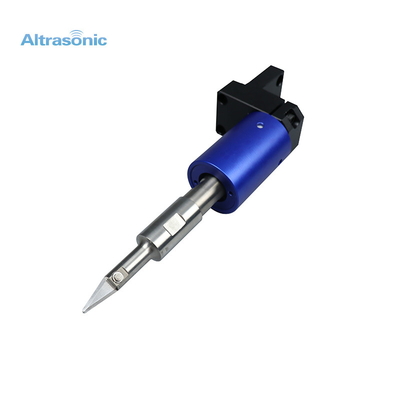

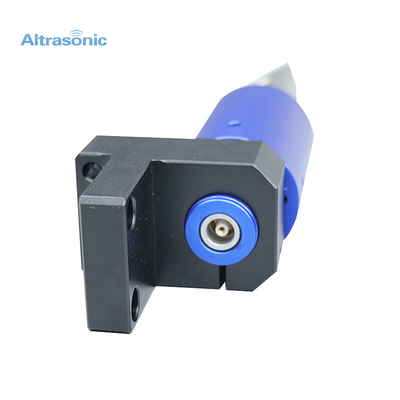

Programmable Ultrasonic Cutting Machine 30khz Installed On Robotic Arm

Description
Frequency: 30kHz Power: 500watt
Power Supply: Ultrasonic Digital Generator Cutting Thickness: 1-7mm
Voltage: 220V / 110V Name: Ultrasonic Fabric Cutting Machine
Model: HS-C30 Material Of Cutter: Titanium Alloy
Weight: 11kg Handle: Φ44×220
High Light:

Robotic Arm Ultrasonic Cutting Machine

,

Blade Replaceable Ultrasonic Fabric Cutter

,

Ultrasonic Fabric Cutter 30khz

30khz Programmable Ultrasonic Cutting Machine Installed On Robotic Arms With Long Service Life

30khz Programmable Ultrasonic Cutting Machine Installed On Robotic Arms

Description:



Due to the characteristics of ultrasonic cutting, all fabrics finish with a superb edge seal, which most importantly prevents fraying. This is due to the intense heat that is rapidly concentrated on the cutting head.

Ultrasonic cutters are designed to give the best edge seal on all fabrics without having to adjust the machine for different fabrics or thickness.

Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation.

Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

A sharp cutting edge, which is difficult for water-jet or laser cutting, can be easily performed by our ultrasonic cutters.It leads to higher productivity and less downtime.


Specification:





Model HS-C30
Frequency 30kHz
Output Power 500watt

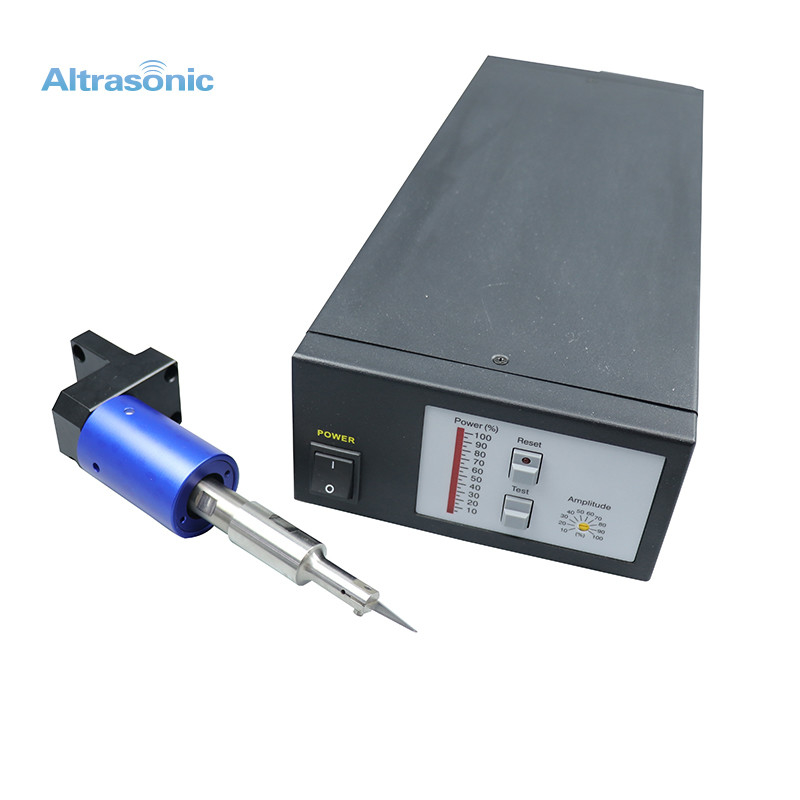

Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 11KG
Voltage 220V / 110V
Accessory Foot switch1pc; 1.5mm special hex wrench 1pc; Screw M3×4L 2pcs
Material of cutter titanium alloy






Application:



1. PP woven fabric

2. Fusible fabric

3. Home textiles

4. Filter fabric

5. Geotextile

6. Knitted fabric



Why choose us?



1. Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.

2. Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.

4. Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.

5. Individual Customize: We can customize products according to your requirements.Also supply OEM service.

6. Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.



Shipping and payment:



Shipping: DHL,TNT,FEDEX,UPS Express etc.

Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.
