Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade

Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade
Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade
Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade

Large Image :  Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5,000 units per month

Non Woven Ultrasonic Cutter 500 Watt 30khz With Titanium Alloy Blade

Description
Frequency: 30khz Voltage: 220V / 110V
Length Of Cable: 3M Material Of Blade: Titanium Alloy, Stainless Steel
Power: 500W Handle: Φ44×220
Generator Type: Digital Certification: CE
Warranty: 1 Year Delivery Time: 7-10 Wokrdays
High Light:

NonWoven Ultrasonic Cutter

,

Titanium Alloy Blade Ultrasonic Cutter

,

Ultrasonic Cutting Machine 500 Watt

30khz 500w Ultrasonic Cutting Machine With Titanium Alloy Blade For Non-Woven Cutting



30khz 500w Ultrasonic Cutting Machine with Titanium Alloy Blade



Specification:

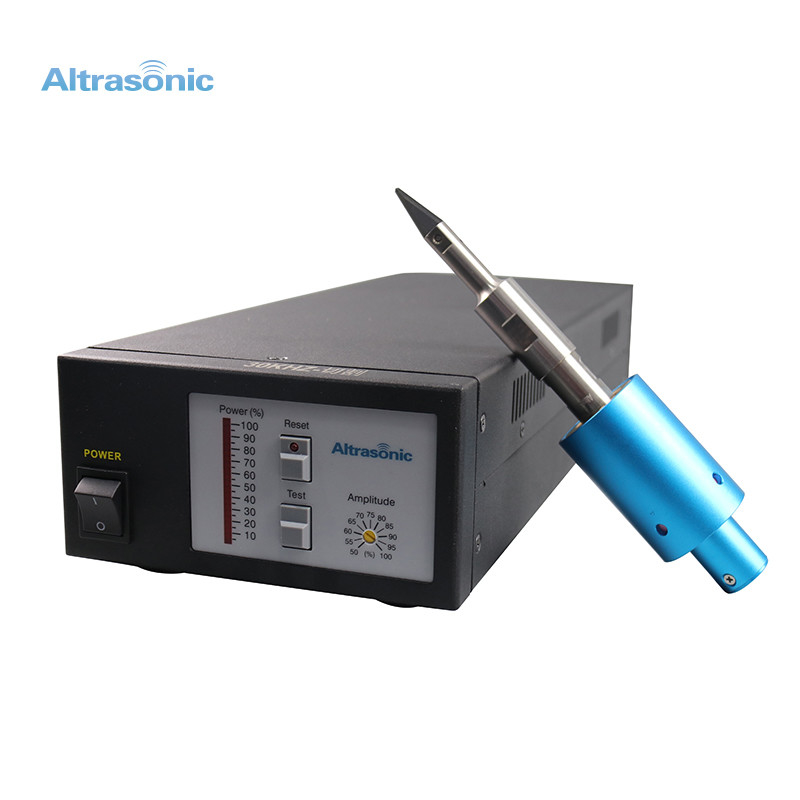

Model HS-C30
Frequency 30KHZ
Output Power 500W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

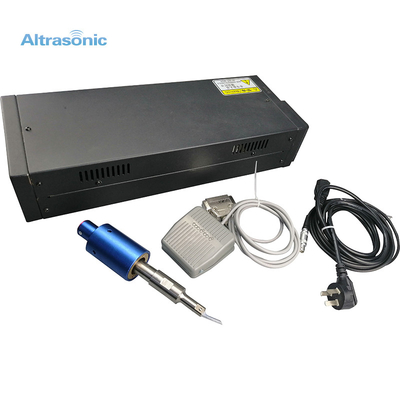

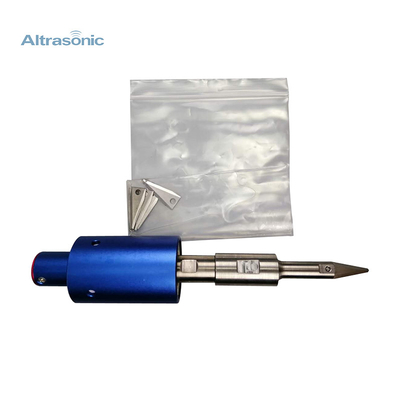

Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade Titanium alloy, stainless steel





Description:

Ultrasonic cutting is a new technology with enormous potential to replace more traditional cutting processes. Ultrasonic cutting is already being implemented in a wide variety of applications all over the world.

Ultrasonic cutting differs greatly from other cutting methods.

Ultrasonic cutting uses ultrasonic energy to slice through objects. The edge of the instrument is blunt in comparison to other cutting methods, and actually creates a fusion effect after cutting an object.

An electric pulse is sent through the cutter, creating microscopic vibrations in the blade. These vibrations are so small they cannot be seen or felt. The energy from the vibrations slices through an object with very little pressure required.



Application range:

1. Raw rubber cutting, pipe cutting, frozen meat, candy, chocolate cutting,

2. Printed circuit board, industrial, jewelry, plastic products processing, food processing, printing industry, automotive industry.

3. Natural fiber segmentation (divided into fine lines), synthetic fiber deep digging (multilayer circuit cutting), plastic casing processing, thin synthetic resin lacquer (suitable for large areas)

4. All types of paper and base film origin (China) or handheld Cutting machine and so on.

The use of ultrasonic cutting machines can also be extended, such as digging holes, shovel digging, scraping paint, engraving, slitting and so on.
