Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface

Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface
Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface

Large Image :  Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Replacement Herrmann 35K
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1,000 units per month

Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface

Description
Product Name: Ultrasonic Welding Transducer Connect Screw: M8X1.5
Frequency: 35Khz Power: 1000W
Capacitance: 5-8nF Type: Herrmann Type
Application: Welding Amplitude: 10um
Warranty: 1 Year Aftersales Service: Online Service
High Light:

HF Interface Ultrasonic Welding Transducer

,

HF Interface Ultrasonic Transducer

,

Herrmann Replacement Ultrasonic Transducer

2022 CE Replacement Herrmann 35Khz Ultrasonic Transducer Welding Repair With Coupler HF Interface



Specifications:



Model Replacement Herrmann 35K
Frequency 35 khz
Output power 1000 watt
Joint bolt M18 * 1.5
Capacitance 5-8nF
Amplitude 10 um
Application welding machine



Descriptions:



It is applied to Herrmann type ultrasonic welding machine.

Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

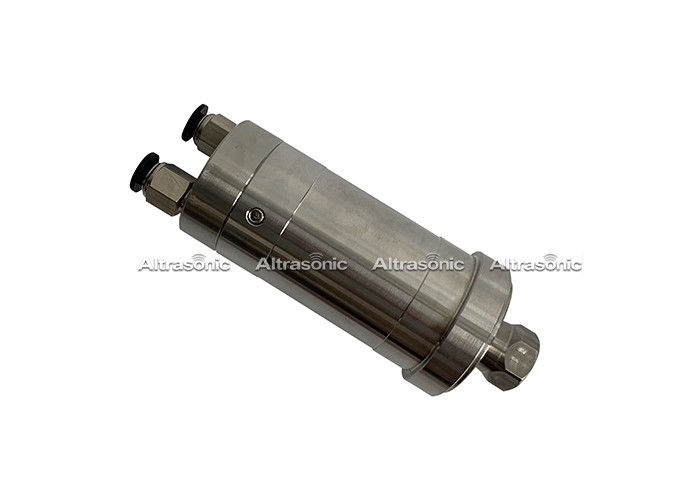

Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface 0

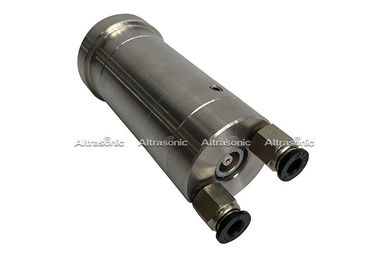

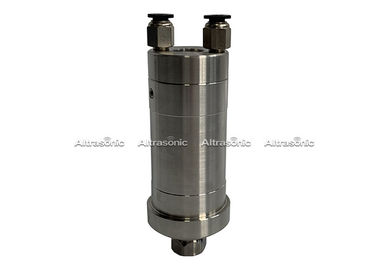

Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface 1Herrmann Replacement Ultrasonic Transducer 35Khz With Coupler HF Interface 2
