Replacement Herrmann Ultrasound Converter With Aluminum Booster 1000w 35khz

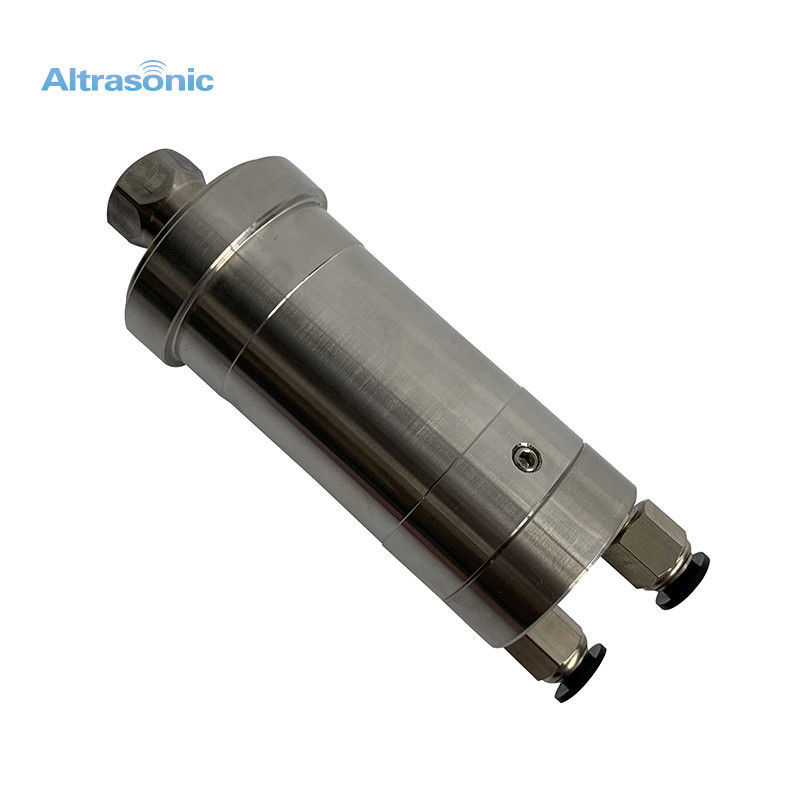

Large Image : Replacement Herrmann Ultrasound Converter With Aluminum Booster 1000w 35khz

Product Details:

Place of Origin:	China
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-HM35

Payment & Shipping Terms:

Minimum Order Quantity:	2 units
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000 units per month

Contact Now

Replacement Herrmann Ultrasound Converter With Aluminum Booster 1000w 35khz

Description

Product Name:	Ultrasonic Converter	Frequency:	35Khz
Power:	1000w	Capacitance:	5-8nf
Application:	Welding Machine	Material Of Booster:	Titanium, Aluminum, Steel Materials Optional
Protective Housing:	Aluminum And Stainless Steel Optional	Type:	Customized
Certificate:	CE	Theory:	Ultrasonic Sensor
High Light:	Aluminum Booster Ultrasound Converter , Replacement Herrmann Ultrasonic Transducer , 35khz Ultrasound Converter

1000w 35khz Replacement Herrmann Ultrasonic Transducer Customized Ultrasound Converter

1000w 35khz Replacement Herrmann Ultrasonic Transducer Customized

Specifications:

Model	HSHM35
Frequency	35 khz
Output power	1000 watt
Joint bolt	M18 * 1.5
Capacitance	5000-8000pf
Amplitude	10 um
Application	welding machine

Description:

It is applied to Herrmann type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,

packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

Competitive Advantages:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

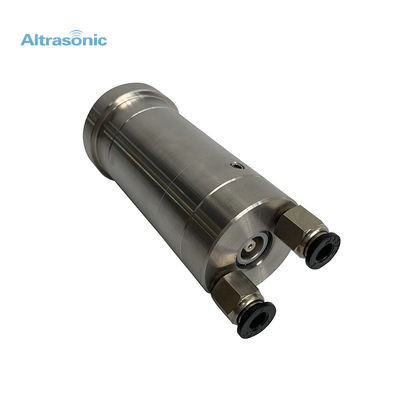

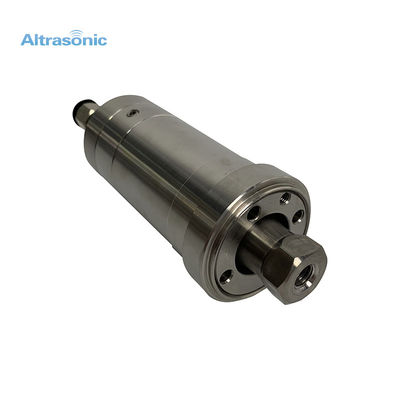

Product display:
