Product Details:
|
| Color Of Ceramic: | Yellow | Capacitance: | 20000 |
|---|---|---|---|
| Input Power: | 3300W | Warranty: | 1 Year |
| Certification: | CE | Ceramic Diameter: | 50 |
| Frequency: | 20kHz | Qty Of Ceramic: | 6 |
| Aftersales Service: | On-line | ||
| High Light: | Welding Ultrasonic Converter,Branson CJ20 Replacement Ultrasonic Converter,Ultrasonic Converter 3300 Watt |
||

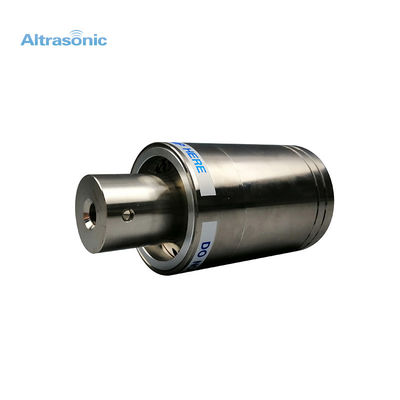

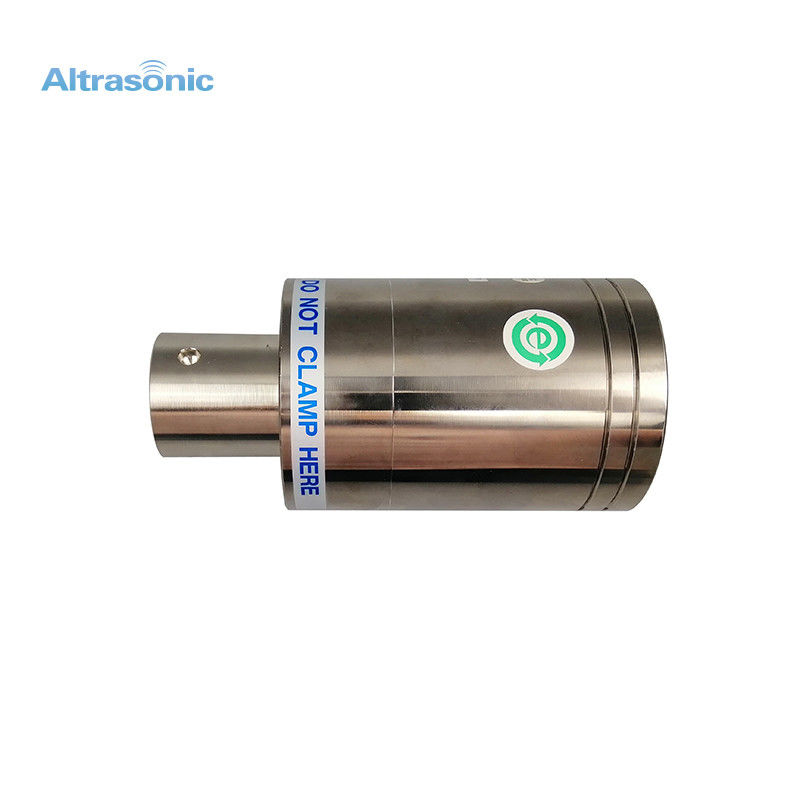

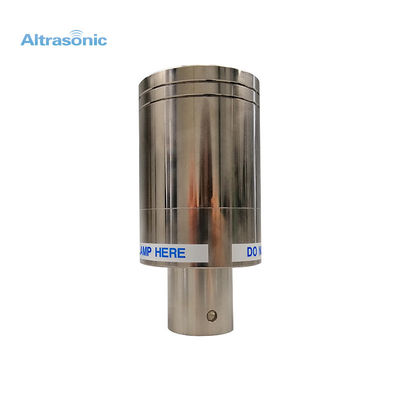

Branson CJ20 Replacement Type Transducer for Welding Application
Specifications:
| Model | HSBC-J20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Application | welding machine |
Description:
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
Replacement Item Specification:
| Model |
Frequency (khz) |
Ca(PF) | Power(w) | Machine |
| Branson 402 | 19.6-20.0 | 7800-8500 | 450-900 | Branson8400 |
| Branson 502 | 19.6-20.0 | 11500-12500 | 2000 | Branson8800/5170 |
| Branson CJ20 | 19.4-19.7 | 19000-21000 | 1100-4000 | Branson2000 series |
| CB35A15A | 36.5-7.5 | 3300-4000 | 800 | Rinco-35A15A |
| CV231 | 38.3-39.0 | 3500-4500 | 900 | 40k Metal Welding |
| CV3510 | 36.2-37.0 | 3200-4000 | 800 | Rinco-CV3510 |
| Dukane 110-3122 | 19.6-20.0 | 12500-14000 | 2600 | Dukane Heavy Duty |
