Product Details:
|
| Product Name: | Ultrasonic Osillator | Joint Bolt: | M8*1 |
|---|---|---|---|
| Ceramic Diameter: | 25mm | Capacitance: | 1.9-2.2nF |
| Application: | Welding | Qty Of Ceramic: | 2 |
| Certification: | CE | Warranty: | 1 Year |
| After Sales Service: | On-line | Input Power: | 400W |
| High Light: | Piezoelectric Ultrasonic Welding Transducer,35khz Ultrasonic Piezoelectric Transducer,Welding Ultrasonic Piezoelectric Transducer |
||

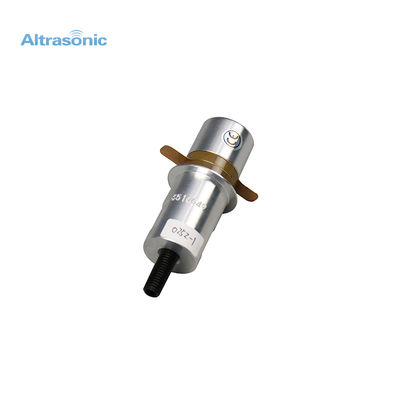

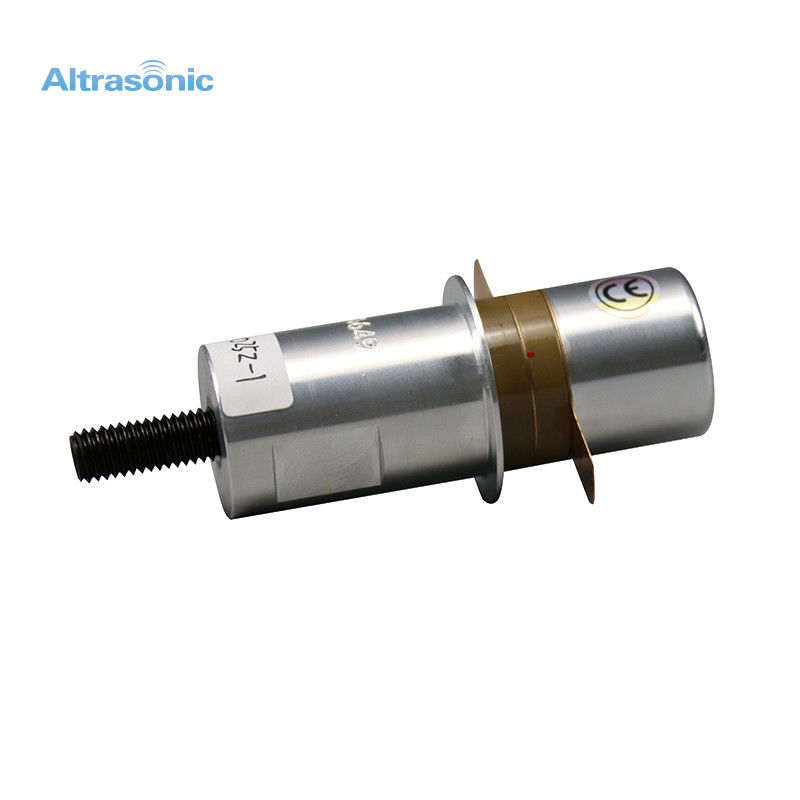

High Efficiency Reliability CE 35khz Ultrasonic Piezoelectric Transducer with Long Service Life
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Ultrasonic welding/cutting/sealing/joiting/bonding equipment.
We can supply Ultrasonic welding transducer/converter to replace some famous brand, such as Branson/Telsonic/Rinco/Dukane and obtained well reputation.
Competitive Advantage:
1. Imported ceramic discs and superior aluminum raw materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
