Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter

Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter
Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter

Large Image :  Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41S30
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per month
Contact Now

Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter

Description
Product Name: Ultrasonic Converter Frequency: 20Khz
Ceramic Diameter: 50 Mm Capacitance: 11-17nf
Power: 2000w Application: Plastic Welding Machine
Ceramic Disc: 4pcs Material: Material: Titanium, Aluminum Materials Optional
Protective Out: Aluminum And Stainless Steel Optional Voltage: 220V/110V
High Light:

Plastic Welding Machine Ultrasonic Transducer

,

Dukane 41S30 Converter Ultrasonic Transducer

,

Dukane 41S30 Ultrasonic Converter

Ultrasonic Transducer Replacement Dukane 41S30 Converter



Specifications:

Model
HS-D41S30
Frequency
20 khz
Output power
1000 watt - 3000 watt
Joint bolt
1/2-UNF
Ceramic disc Diameter
50 mm
Quantity of Ceramic discs
4 pcs
Capacitance
11000 pf
Amplitude
20 um
Application
welding machine


Description:

Ultrasonic transducer is a device that converts electrical energy into mechanical energy. The device that converts electrical energy and acoustic energy by piezoelectric effect is called piezoelectric transducer.


Replacement Item:

Item No
Connect Screw (Size)
Ceramic diameter
(mm)
Qty of ceramic
(PC)
Frequency(khz)
Resistance(Ω)
Color of ceramic
Capacitance
Input Power
(W)
Branson CJ20
1/2-20UNF
50
6
19.90
10
Yellow
20000
3300
Branson 502
1/2-20UNF
50
6
19.90
10
Yellow
20000
3300
Branson 402
M8*1.25
25
4
39.60
10
Yellow
4200
800
Branson 4TH
M8*1.25
25
4
39.90
10
Yellow
4200
800
Branson 902
1/2-20UNF
40
4
19.85
10
Yellow
8000
1100
Branson 922J
1/2-20UNF
50
6
19.90
10
Yellow
20000
2200
Dukane 40K
M8*1.25
35
2
39.80
5
Gray
3000
800
Dukane 20K
1/2-20UNF
50
2
19.50
10
Yellow
11000
2000
Dukane 110-3122
1/2-20UNF
50
4
19.50
10
Yellow
11000
2000
Dukane 110-3168
1/2-20UNF
45
2
19.50
10
Yellow
4000
800
Rinco 35K
M8*1.25
25
2
34.80
50
Yellow
2000
900
Rinco 20K
M16*2
50
2
19.90
50
Yellow
5000
3000
Telsonic 35K
M8*1.25
25
4
35.00
5
Yellow
4000
1200
Telsonic 20K
1/2-20UNF
50
4
20.00
3
Yellow
10000
2500


Competitive Advantages:

1. Its output is stable and not easy to crack.
2. Frequency and static capacitance are consistent.
3. The resonance impedance is small, the heat generation is small, the use temperature range is wide, and the reliability is high.
4. It is made of piezoelectric ceramic material, which has high conversion efficiency and can be mass-produced.
5. The transducer has good electromechanical conversion efficiency under high power and high amplitude conditions.
6. The size and shape of the Ultrasonic Transducer for Welding are specially designed to match the welder completely.


What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.


Product display:

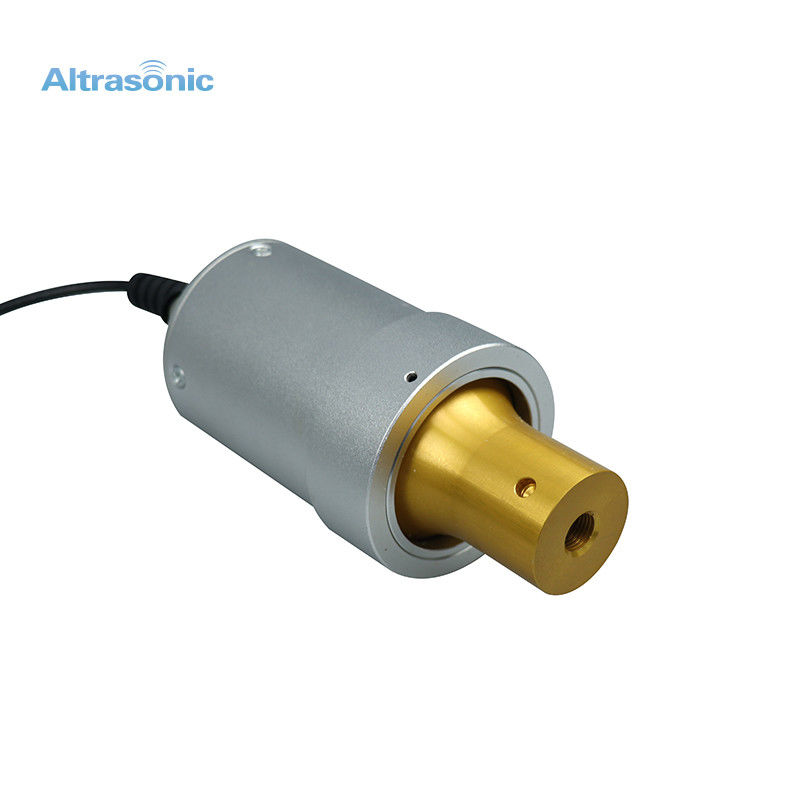

Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter 0

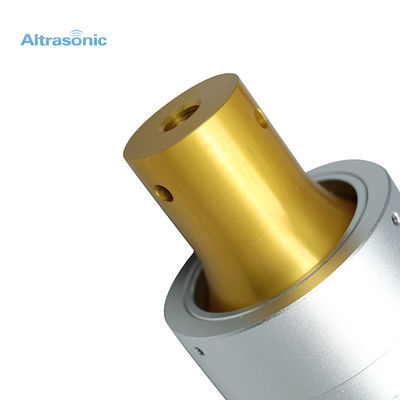

Plastic Welding Ultrasonic Transducer Replacement Dukane 41S30 Converter 1
