Product Details:
|
| Frequency: | 15Khz | Model Number: | HS-6015-4Z |
|---|---|---|---|
| Power: | 2600w | Voltage: | 110V/220V |
| Single Package Size: | 45*42*26CM | Leading Time: | 7-10 Working Days |
| Max. Amplitude: | 18um | Capacitance(pf): | 8000-13500 |
| High Light: | 2600w Ultrasonic Welding Transducer,Booster Ultrasonic Welding Transducer,Ultrasonic Welding Transducer 15kHz |
||

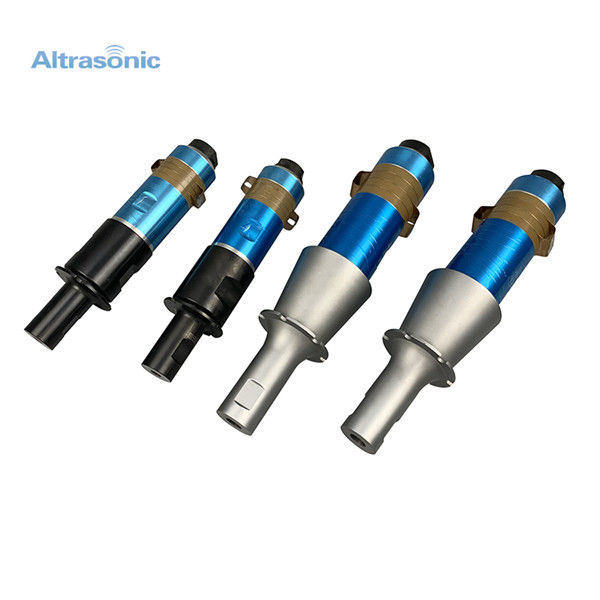

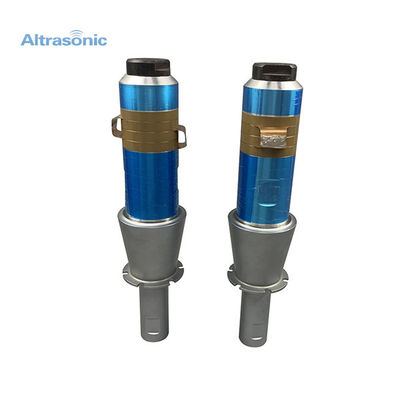

15kHz 2600w Ultrasonic Welding Transducer With Booster
Description:
Ultrasonic transducer, including housing (1), matching layer or acoustic window (2), piezoelectric ceramic disc transducer (3), backing (4), lead cable (5), characterized in that it also includes Cymbal array receiver, which is composed of lead-out cable (6), 8-16 Cymbal transducers (7), metal rings (8), (9) and rubber gasket (10); Cymbal array receiver is located on the disc Above the piezoelectric transducer 3; the piezoelectric ceramic disc transducer is used as the basic ultrasonic transducer, which transmits and receives ultrasonic signals; the Cymbal array receiver is located on the disc piezoelectric transducer, As an ultrasonic receiver, used to receive Doppler echo signals outside the frequency band of the disc transducer
Specification:
| Frequency | 15KHz |
| Power | 2600Watt |
| Voltage | 110V/220V |
| Single package size | 45*42*26CM |
| Ceramic Diameter | 60mm |
| Max. Amplitude | 18um |
Competitive Advantages:
1. High performance.
2. Easy matching with ultrasonic generator
3. Superior raw materials
4. Special items can customized.
5. Low resonance impedance and heat productivity
