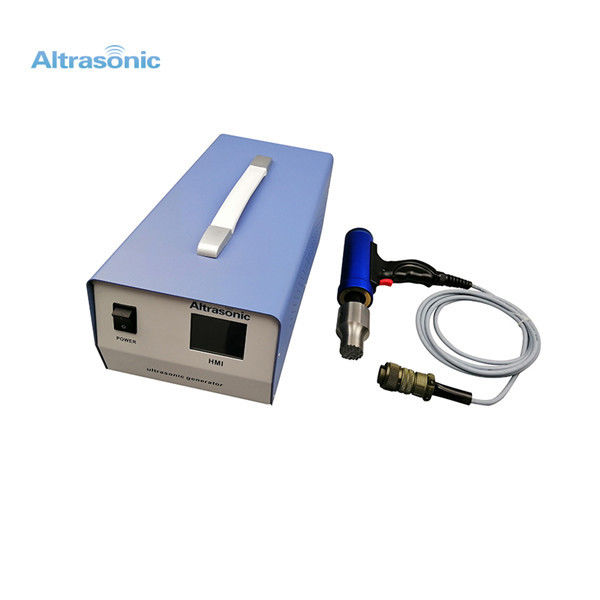

35kHz 1000Watts Ultrasonic Spot Welding Machine CE Approved

35kHz 1000Watts Ultrasonic Spot Welding Machine CE Approved Equipment

Description:

35K 1000W Ultrasonic Spot Welding Machine ,electronic upgrading of products, welding requirements for plastic parts is higher and higher.And ultrasonic welding technology with environmental protection, energy saving, security, and the advantages of without adjuvant, adapt to the high demand of electrical and electronic industry.

Function:

1. Welding:

The welding head vibrating at ultra-high frequency of ultrasonic wave under the moderate pressure makes the joint surface of the two plastics generate friction heat and melt fusion at the same time. The welding strength can be comparable with the body, using suitable workpiece and reasonable interface design. It can achieve watertightness and airtightness, and eliminates the inconvenience caused by the use of auxiliary materials to achieve efficient and clean welding.


2. Riveting welding:

Ultrasonic ultra-high frequency vibration welding head, pressing the tip of the plastic product, so that it instantly melts into a rivet shape, so that the materials of different materials are mechanically riveted together.


3. Buried:

By means of the trajectory of the welding head and appropriate pressure, the metal parts (such as nuts, screws, etc.) are squeezed into the plastic hole and fixed at a certain depth. After completion, the tension and torque can be comparable. The strength of the traditional mold forming can eliminate the disadvantages of the injection mold being damaged and the injection slow.


4. Molding:

This method is similar to the riveting method. The concave welding head is pressed against the outer ring of the plastic product, and the ultrasonic hair is ultrasonically shaped and covered by the ultra-high-frequency vibration of the welding hair to be coated with the metal object to fix it, and The appearance is smooth and beautiful, and this method is mostly used in the fixed forming of electronic type and horn, and the fixing of lenses of cosmetics.


5. Spot welding:

Welding two pieces of plastic points without pre-designing the welding line to achieve the purpose of welding; for larger workpieces, it is not easy to design the workpiece of the welding line for point welding, and the welding effect can be achieved, and multiple points can be spot-welded at the same time.

Characteristics:

1. Lightweight, easy to carry, easy to operate (portable)

2. More d applications in riveting, forming and welding.

3. Easy to set welding time

4. Equipped with overload protection circuit (voltage, current, phase, temperature, output)

5. FET power output

6. Automatic resonance

7. Automatically maintain amplitude function

8. Startup: reaches full power at a rate of 105 milliseconds

Application:

1. Airbag

2. Interior

3. Tire Cord

4. Convertible top

5. FVK Automotive

6. Light and sun protection
