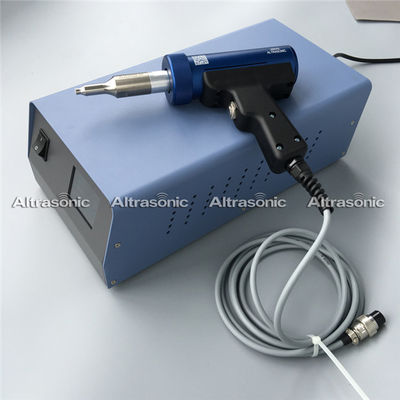

Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator

Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator
Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator

Large Image :  Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSW35
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator

Description
Model: HSW35 Frequency: 35Khz
Power: 1000Watt Horn: ≤10mm
Weight: 1.0kg Generator: Digital Generator
High Light:

handheld ultrasonic welding machine

,

Ultrasonic Welding Machine 35k

,

spot Ultrasonic Welding Machine

Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator



Specifications:



Item No. HSW20 HSW30 HSW35 HSW40 HSW50
Frequency 20KHz 30KHz 35KHz 40KHz 50KHz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg

1.0kg





Description:



The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head.



Applications:



It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.



spot welder



Detailed Images:

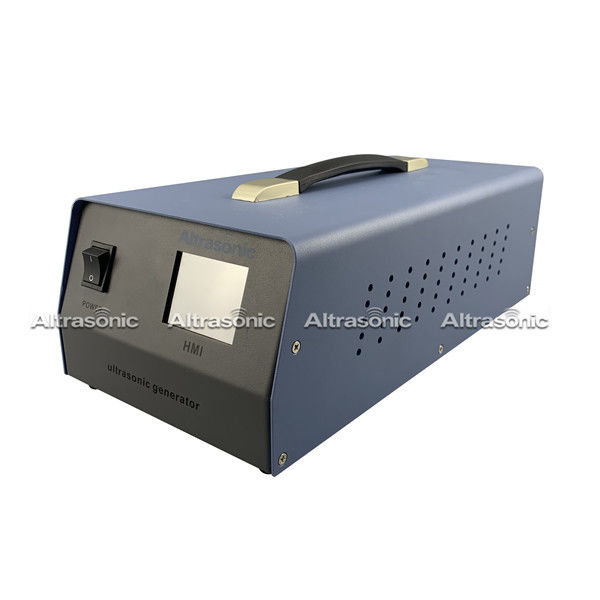

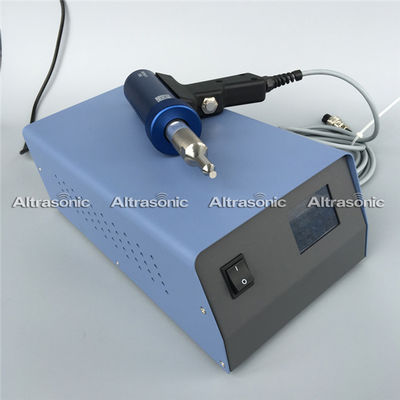

Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator 1

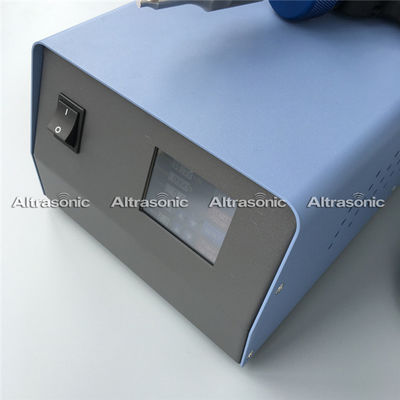

Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator 2





Advantages:

1.Application in riveting, forming and welding

2.Light weight, easy to take, easy to operate (handheld)

3.Equipped with welding timer

4.Easy to set time welding

5.Equipped with an overload protection circuit (voltage, current, phase, temperature, output)

6.Automatic resonance

7.Maintain the amplitude function automatically



Shipping:



Spot Handheld Ultrasonic Welding Machine 35k With Digital Generator 3
