Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine | Frequency: | 35K |
|---|---|---|---|
| Power Adjustable:: | 30%-99% | Welding Type:: | Hand-held Operation Or Mounting On The Machine |
| Weight: | 10kgs | After-sales Service: | Online Support, Video Technical Support |
| Power: | 700w | Horn: | ≤10mm |
| High Light: | ultrasonic piercing welding,35k ultrasonic spot welding machine,700w ultrasonic spot welding machine |
||
35k 700w Ultrasonic Spot Welding Machine For Auto Parts
Description:
Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effec
Specification:
| Gun Type | Cylinder Type | ||||||
| Model | HS-35G | HS-28G | HS-28G | HS-20G | HS-28C | HS-28C | HS-28C |
| Frequency | 35k | 28k | 28k | 20k | 28k | 28k | 28k |
| Power | 700 | 300&500 | 400&700 | 900 | 300&500 | 400&700 | 500&800 |
| Horn | ≤10mm | ≤10mm | ≤12mm | ≤13mm | ≤8mm | ≤12mm | ≤12mm |
| Housing Diameter | 51mm | 64mm | 40mm | 45mm | 60mm | ||
| Handle Size | 100mm×45mm×32mm | —— | —— | —— | |||
| Weight Without Wire and Horn | 0.6kg | 1.3kg | 1.3kg | 1.5kg | 0.6kg | 0.6kg | 1.3kg |
| Digital generator | ● | ● | ● | ● | — | ● | ● |
| Analog generator | ● | ● | ● | ● | ● | ● | ● |

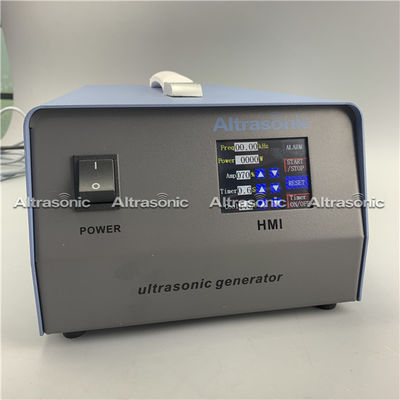

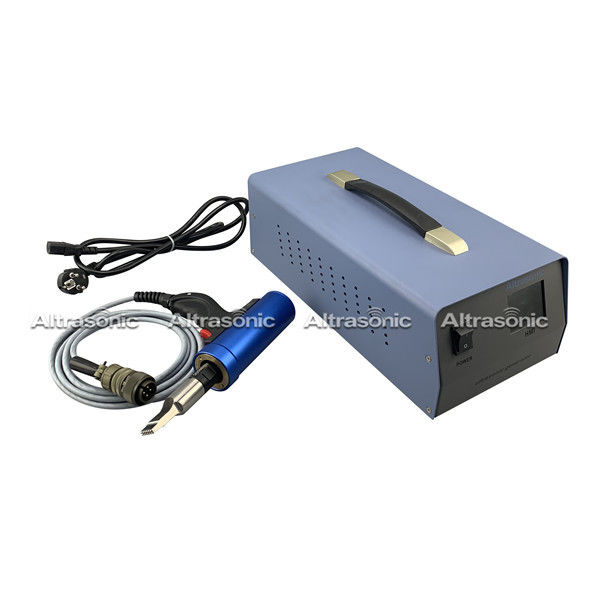

Detailed Images:
The welding effect:
Types of Horn:
1. Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

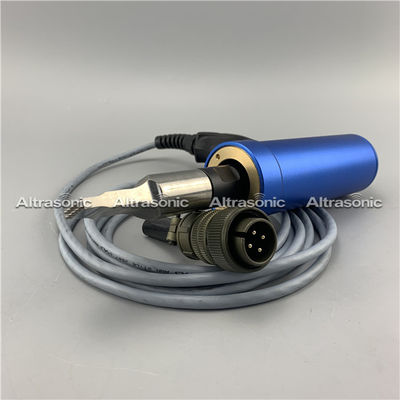

2. Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be
installed between the on machine, welding operation for each direction.
Certification:
