Product Details:
|
| Name: | Food Grade Titanium Alloy Ultrasonic Food Cutting Macine | Model: | HS-C20 |
|---|---|---|---|
| Feature: | No Pollution, No Noise | Frequency: | 20Khz |
| Power: | 1000w | Material Of Blade: | Food Industry Approved Titanium |
| Length Of Blade: | 305mm | Generator: | Digital; Auto-tuning |
| High Light: | 20Khz ultrasonic food cutting machine,1000w ultrasonic food cutting machine,305mm ultrasonic food cutting machine |
||
Food Grade Titanium Alloy 20Khz Ultrasonic Food Cutting Machine
Specification:
|
Frquency |
20kHz |
|
Power |
800w |
|
Input |
AC110-240V, 50/60Hz |
|
Power Controller |
stepping or continuous |
|
Length of the blade |
305mm |
|
Material Of Cutting Head |
stainless steel, titanium alloy, alloy steel |
|
Accessories |
foot switch, additional blade |
|
Cable Length |
3M or customized |
Description:
In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.
Ultrasonic cutting advantage and features:
1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge
3. Powerful, effective realiable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.
Application:
♦ Bakery and snack foods,
♦ Candy and confectionery cheese/Fish/Prepared meat/Vegetable/Health Bars;
♦ Chocolates, sandwich and wrap cutting;
♦ Dry fruit;
♦ Poultry;
♦ Potted;
♦ Processed meat;
♦ Ground meat;

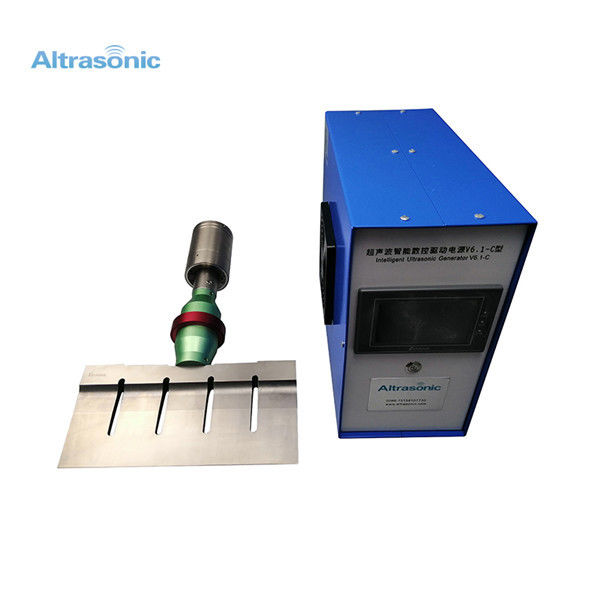

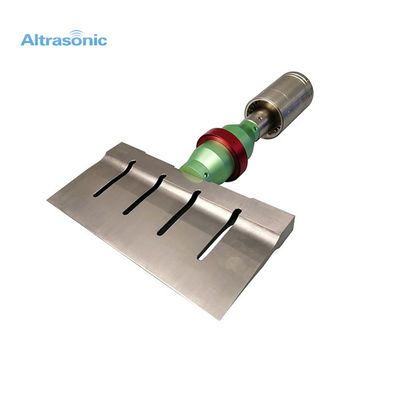

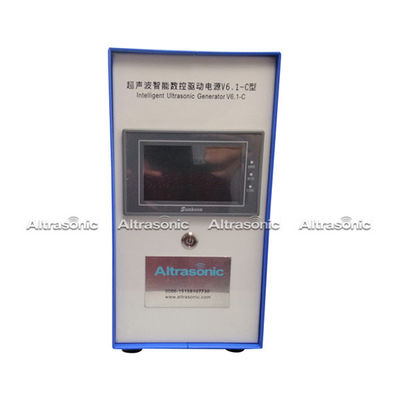

Detailed images:
