Product Details:
|
| Frequency: | 35khz | Application: | Sealing Or Welding |
|---|---|---|---|
| Components: | Ultrasonic Transducer, Generator And Wheel | Net Weight: | 30kg |
| Frequency Tuning Method: | Frequency Tuning Method | Power: | 800W |
| High Light: | 800w ultrasonic cutting machine parts,35khz ultrasonic cutting machine parts |
||

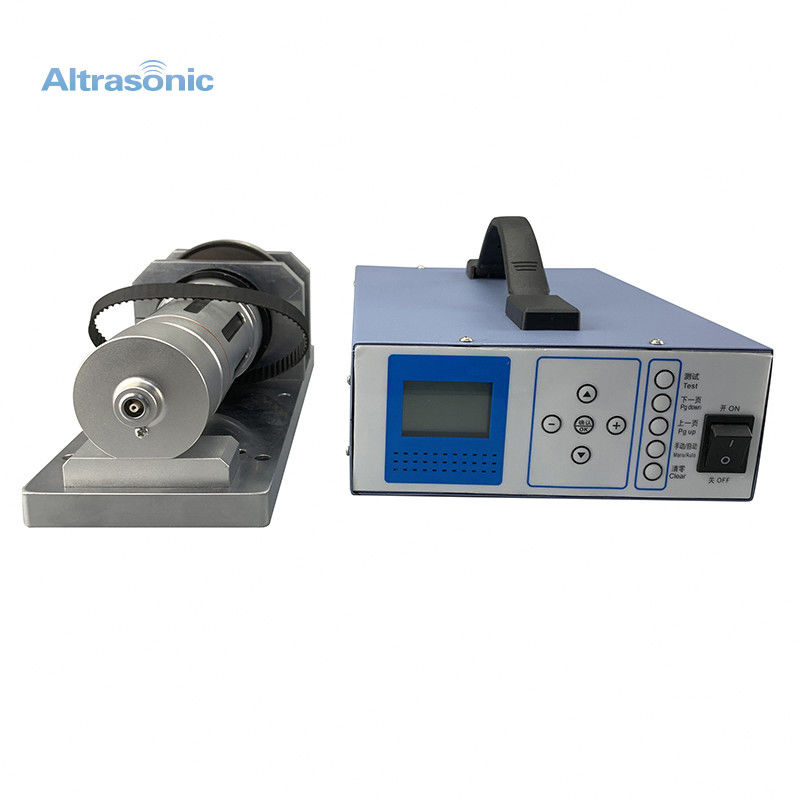

35kHz 800 Watt Ultrasonic Sealing And Cutting Machine Core Parts
Description:
The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.
Specification:
| Model | HS-WS35S |
| Frequency | 35 KHz |
| Power | 1000 W |
| Rotary Welding Horns Width | 12 mm |
| Power Adjust Method | File or Continuous |
| The Horns Surface Hardness | More than HRC56 |
| Real-time Display | Working Frequency and Working Current |
| Synchronizing Wheel Specifications | 46XL Trapezoidal Tooth,Width16mm |
| Synchronizing Belt Matched | The Length is not more than730mm,the Width 12mm |
| Allowable Rotation Speed | 100 r/min |
| Install Bolt | M8, 4 pcs |
Function:
Raw material - Bag mouth fold - thermal bonding - side fold - bottom sealing - loop handle fix - thermal bonding - edge cut - bag cut - collection.

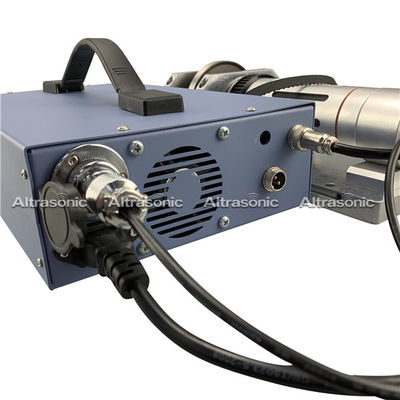

Detailed image:
.
