Product Details:
|
| Brand Name: | Altrasonic | Condition: | New |
|---|---|---|---|
| Usage: | Welding | Weight: | 25KG |
| Frequency: | 15KHz±0.5 KHz | Power: | 2600W |
| Voltage: | 220v,50-60hz | Horn Size: | 200*25mm |
| High Light: | portable spot welding machine,portable spot welder |
||

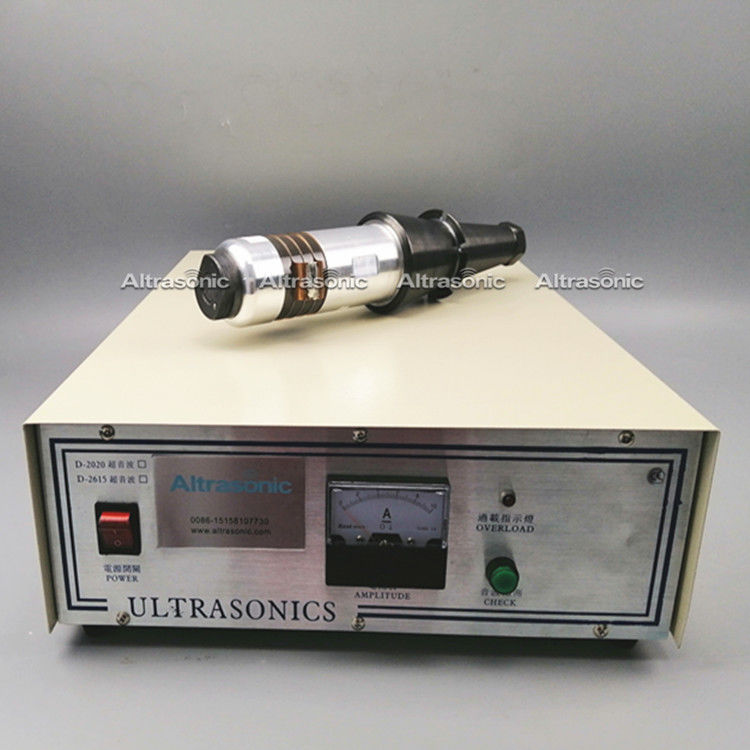

Welding Ultrasonic Generator With Ultrasonic Transducer 15kHz 2600W And Steel Sonotrode
Description:
15kHz 2600Watt Ultrasonic Welding equipment is suitable for welding 5-6ply N95 mask, sealing N95 mask, blank flat mask making machine, etc. The non-woven fabric layer of the medical mask is mainly made of polypropylene fiber material with high solubility, which belongs to the fiber material with high solubility of polypropylene products. Ultrasonic welding system can weld non-woven fabrics well, environmentally friendly, sterile, efficient and strong.
Principle:
The principle of ultrasonic mask machine welding mainly uses ultrasonic technology to transmit ultrasonic energy to the welding zone through the upper welding piece. Due to the large acoustic resistance at the welding interface, which is the interface between the two weldings, local high temperatures will occur. In addition, due to the poor thermal conductivity of plastics, nylon, chemical fibers, non-woven fabrics, multi-layered fabrics, and gold fabrics, they cannot be distributed in time and gather in the welding zone, causing the two contact surfaces to melt rapidly. After applying a certain pressure, Fusion into one. When the ultrasonic wave stops functioning, the pressure is allowed to continue, and the pressure is maintained for a while, so that it solidifies and forms, so that a strong molecular chain is formed to achieve the purpose of welding, and the welding strength can be close to the strength of the raw material body.
Specifications:
| Product Name | 15k ultrasonic welding system |
| Frequency | 15k |
| Power | 2600w |
| Horn size | 200*25mm |
| Weight | 28kg |
| Usage | Ultrasonic welding |
| Single package size | 45*42*26CM |
Application:
Spot welding, plastic welding, non-woven fabric welding, mask ear welding, surgical gown welding, etc.
Competitive Advantage:
Small noise.
Aesthetic creation.
Low cost and high efficiency .
Efficient and environmentally friendly.
Easy to automate production.
