20khz 2000w Ultrasonic Spot Welding Machine For Medical Surgical Mask Making Machine

China 20khz 2000w Ultrasonic Spot Welding Machine For Medical Surgical Mask Making Machine supplier
20khz 2000w Ultrasonic Spot Welding Machine For Medical Surgical Mask Making Machine supplier 20khz 2000w Ultrasonic Spot Welding Machine For Medical Surgical Mask Making Machine supplier

Large Image :  20khz 2000w Ultrasonic Spot Welding Machine For Medical Surgical Mask Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSW20

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding System Frequency: 20khz
Net Weight: 20kgs Horn Size: 110*20mm
Generator: Digital Usage: Ultrasonic Welding

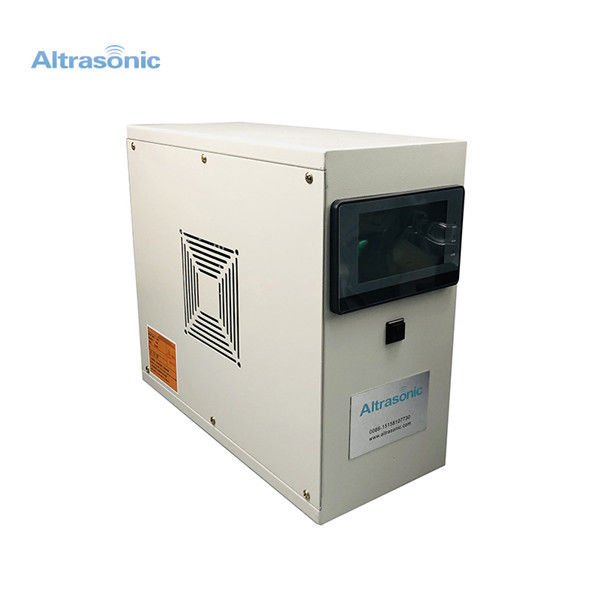

20khz 2000w Ultrasonic Welding System For Medical Surgical Mask Making machine



Description:
The automatic frequency tracking ultrasonic generator can be suitable for ultrasonic plastic welding machines and ultrasonic metal welding machines of different frequencies. If your ultrasonic equipment is not easy to use now, the work is unstable, or the ultrasonic electric box is often easily damaged, you can replace one of our This digital ultrasonic generator;





Specifications

Item No:HS-W20

Frequency:20kHz

Power:2000W

Voltage:110V/220V

Working Temperature:5°C-50°C

Generator:Digital Generator

Horn size:110*20mm





Advantage:

1. This model is a digital power supply, which eliminates the inconvenience of manual frequency modulation. It automatically detects the frequency at startup and is more convenient and simple to use;

2. Built-in computer digitalization of various parameters, automatic compensation amplitude, amplitude is not large when no-load, amplitude and power are synchronously amplified when the load is heavier, so as to effectively protect the transducer and welding head mold, welding accuracy is higher

3. More advanced protection circuit, the output sound wave is overloaded, the mold is suddenly broken and overloaded, and the built-in computer detection circuit cuts off the output in a very short time, thereby protecting the internal circuit;

4. The operation interface can be selected in Chinese or English, which is more convenient for foreign purchases;





Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement
