Product Details:
|
| Product Name: | Ultrasonic Welding System | Frequency: | 20khz |
|---|---|---|---|
| Net Weight: | 20kgs | Horn Size: | 110*20mm |
| Generator: | Digital | Usage: | Ultrasonic Welding |
| High Light: | portable spot welding machine,sonic welding machine |
||

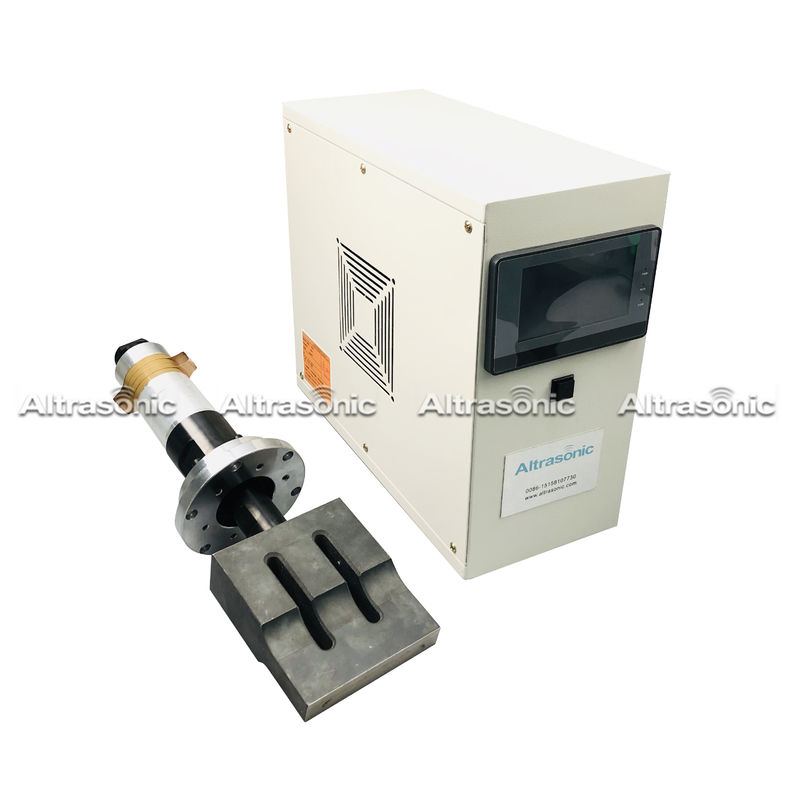

High Performance 20kHz Ultrasonic Spot Welding Machine With Digital Generator
Description:
Ultrasonic generator also called ultrasonic power supply. Its function is to convert our mains electricity (220V or 380V, 50 or 60Hz) into a high-frequency alternating current signal that matches the ultrasonic transducer. From the form of amplifying circuits, linear amplifying circuits and switching power supply circuits can be used, and high-power ultrasonic power supplies generally adopt the circuit form of switching power supplies in terms of conversion efficiency. Linear power supply also has its unique application range. Its advantage is that it does not require strict circuit matching, allowing continuous and rapid change of operating frequency.
Specifications:
| Product Name | 20k ultrasonic welding system |
| Frequency | 20k |
| Power | 2000w |
| Effective working area | 110*20mm |
| Weight | 20kg |
| Usage | Ultrasonic welding |
| Generator Type | Digital Generator |
Advantage:
1. Automatic frequency tracking, no need for manual adjustment, no need to adjust the frequency when changing the welding head.
2. The frequency chase range is wide, generally in the 1.5khz range, and the analog circuit is generally in the 400hz range.
3. Light weight, general digital circuit machines are relatively light
4. High frequency tracking accuracy, generally accurate frequency tracking within 3hz.
5. Complete protection function with voltage stabilizing function
Comparison:
| Analog generator | Digital generator | |
| Circuit | Analog circuit, discrete components | Digital circuit, the chip control |
| Automatic search | × | ● |
| Automatic frequency tracking | × | ● |
| Frequency adjustment range | ±0.15 KHz | ±0.5 KHz |
| Power regulation | × | ● |
| 24 hours of continuous work | × | ● |
| Non resonant condition | × | ● |
| LCD | × | ● |
| Add the PLC protocol | × | ● |
| Automatic circuit protection | Bad, easy to cause the damage of components | Good |
| Repair method | Professional repair | Module replacement |
