CE Passed 15k 2600w Ultrasonic Vibration Transducer For Mask Making Machine

China CE Passed 15k 2600w Ultrasonic Vibration Transducer For Mask Making Machine supplier
CE Passed 15k 2600w Ultrasonic Vibration Transducer For Mask Making Machine supplier CE Passed 15k 2600w Ultrasonic Vibration Transducer For Mask Making Machine supplier

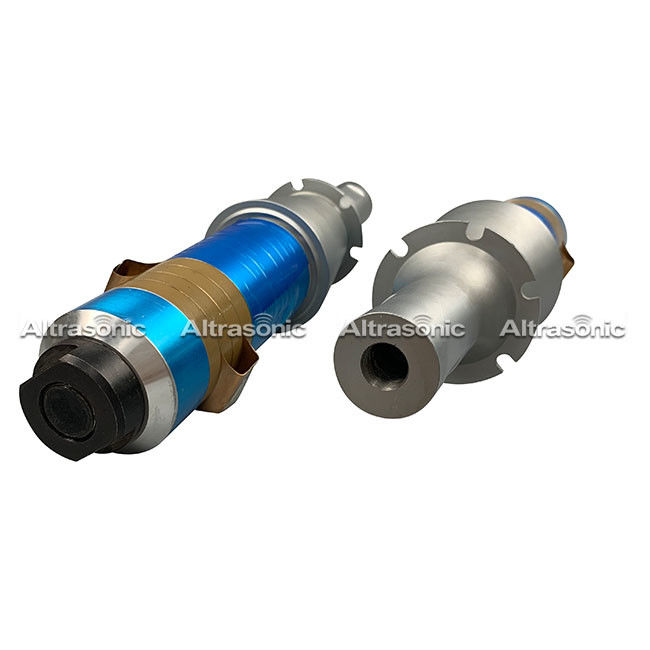

Large Image :  CE Passed 15k 2600w Ultrasonic Vibration Transducer For Mask Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-6015-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces/month
Contact Now
Detailed Product Description
Frequency: 15Khz Model Number: HS-6015-4Z
Power: 2600w Voltage: 110V/220V
Single Package Size: 45*42*26CM Leading Time: 7-10 Working Days
Connect Screw: M20 1.5 Or M16 1 Max. Amplitude (μm): 16



15k 2600w vibration ultrasonic transducer for mask making machine



Description:

The transducer is an energy converter, which can convert high-frequency, high-power current, and the output of the power supply to the reciprocating mechanical energy of ultrasonic vibration, and the vibration frequency output of the driving power is the same as the frequency of the current. Suitable for ultrasonic welding





Specification:

Frequency 15KHz
Power 2600Watt
Voltage 110V/220V
Single package size 45*42*26CM
Ceramic Diameter 60mm
Max. Amplitude 18um



Main Features

1. High mechanical quality

2. Piezoelectric element offer a high speed of vibration.3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity

5. Bolt-on mounting gives the fast, easy installation and high reliability.

6. easy for assembling

7. good heat resistance

8. large range of working temperature

9. low resonance impedance and heat productivity

10. good construction

11. fastened by bolt




CE Passed 15k 2600w Ultrasonic Vibration Transducer For Mask Making Machine

CE Passed 15k 2600w Ultrasonic Vibration Transducer For Mask Making Machine
