Product Details:
|
| Brand Name: | Altrasonic | Condition: | New |
|---|---|---|---|
| Usage: | Welding | Weight: | 25KG |
| Frequency: | 15KHz±0.5 KHz | Power: | 2600W |
| Voltage: | 220v,50-60hz | Horn Size: | 200*25mm |
| Working Temperature: | +5℃--+50℃ | Single Package Size: | 45*42*26CM |
| High Light: | sonic welding machine,portable spot welder |
||

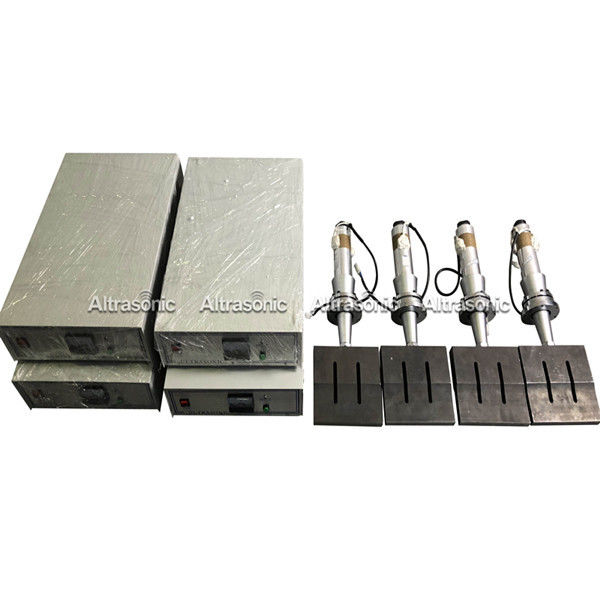

15K Ultrasonic Spot Welding Machine Generator + Transducer + Welding Horn
Description:
Ultrasonic generator welding system are ideally suited for surface treatment applications where space is at a premium. It is with compact design, digital frequency generation and control, absolutely constant power output and an integrated interval function, these generators set new standards in the power output range up to 3000Watts.
Specifications:
| Product Name | 15k ultrasonic welding system |
| Frequency | 15k |
| Power | 2600w |
| Horn size | 200*25mm |
| Weight | 28kg |
| Usage | Ultrasonic welding |
| Single package size | 45*42*26CM |
Application:
Spot welding, plastic welding, non-woven fabric welding, mask ear welding, surgical gown welding, etc.
Advantage:
1. The use of high-quality materials, good heat resistance, low resonance impedance, low heat generation.
2. Once assembled,the transducers are aged before testing and final assembly
3. One by one testing to ensure that each transducer performance are excellent
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability
5. Titanium, aluminum, steel materials of horn optional
6. Imported ceramic discs and superior aluminum raw materials
Detailed Image:
