|Measurement Speed:||5s/one Pass(600scan Point) Adjustable||Frequency Accuracy:||±10ppm|
|Phase Resolution:||0.15 Degree||Impedance Range:||1Ω～1MΩ|

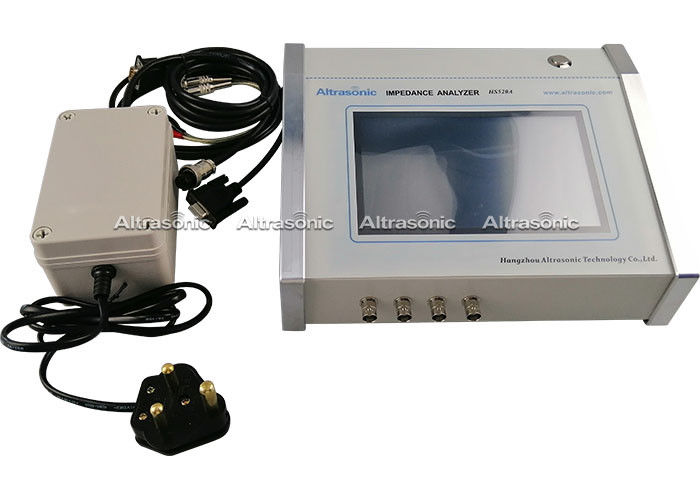

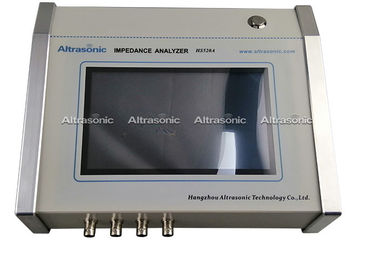

Large Full-screen Touching Ultrasonic Measuring Instrument HS520A
The Ultrasonic Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. It is for these elements as an oscilloscope is for the electronics.
With the analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.The Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more
|Product feature||Portable, 8inch screen, Full touch screen|
|Measurement Index||All the parameters, the graph|
|Measurement Accuracy||< 0.5%|
|Measurement Speed||5s/one pass(600scan point) Adjustable|
|Phase Resolution||0.15 degree|
|Environment Temperature||10～40degree centigrade|
|Power Supply||AC100V～AC250V,50～60Hz, 30W|
Advantages and benefits:
• Practicality and ease of use. No need for ultrasonic expertise.
• Allows the quality control of ultrasonic transducers reducing technical assistance.
• Makes fast and accurate manufacturing of sonotrodes possible.
• Affordable cost.
• Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.
