N95 Mask Making Machine Miniature Ultrasonic Transducer In Face Medical Mask

China N95 Mask Making Machine Miniature Ultrasonic Transducer In Face Medical Mask supplier

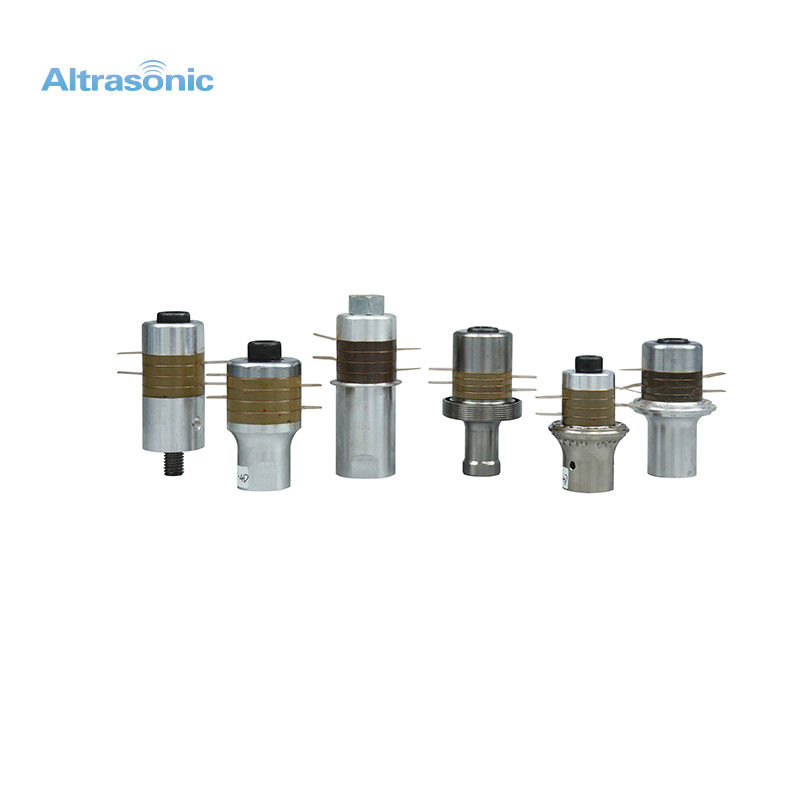

Large Image :  N95 Mask Making Machine Miniature Ultrasonic Transducer In Face Medical Mask

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5015-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Model Number: HS-5015-4Z Frequency: 15k
Max Amplitude: 12um Input Power: 1500W
Certification: CE Qty Of Ceramic: 4

n95 non woven dustproof mask making machine ultrasonic transducer



Principle:

1.The main ultrasonic unit composed of a converter (piezoelectric transducer),booster and asonotrode(horn). All three elements of the stack are specifically tuned to resonate at the same exact ultrasonic frequency( typically 15,20,30,35 or 40KHz)

• Converter/transducer: converters the electrical signal into a mechanical vibration

• Booster: modifies the amplitude of the vibration. It is also used in standard systems to clamp the stack in the press.

• Sonotrode/horn: applies the mechanical vibration to the parts to be welded.

ultrasonic generator(power supply) delivering a high power AC sinal with frequency matching the resonance frequency of the stack.



Specifications:



Model HS-5015-4Z
Frequency 15khz
Output power 1500watt
Joint bolt M18*1.5
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 12~13nf
Amplitude 12um
Application Welding



Features:

1.Adopt the imported chips

2.High output power

3.High quality

4.Already export to USA, Europe, Asia ,Middle East etc country

5.15KHz-70KHz,100w-6000w supplied



Application :

The applications of ultrasound are extensive and are found in many industries including electrical and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding thermoplastics. It is fast and easily automated with weld times often below one second and there is no ventilation system required to remove heat or exhaust.



Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

N95 Mask Making Machine Miniature Ultrasonic Transducer In Face Medical Mask
