5015-4z Ultrasonic Welding Transducer For Nonwoven Medical Grade Face Mask Machine

China 5015-4z Ultrasonic Welding Transducer For Nonwoven Medical Grade Face Mask Machine supplier

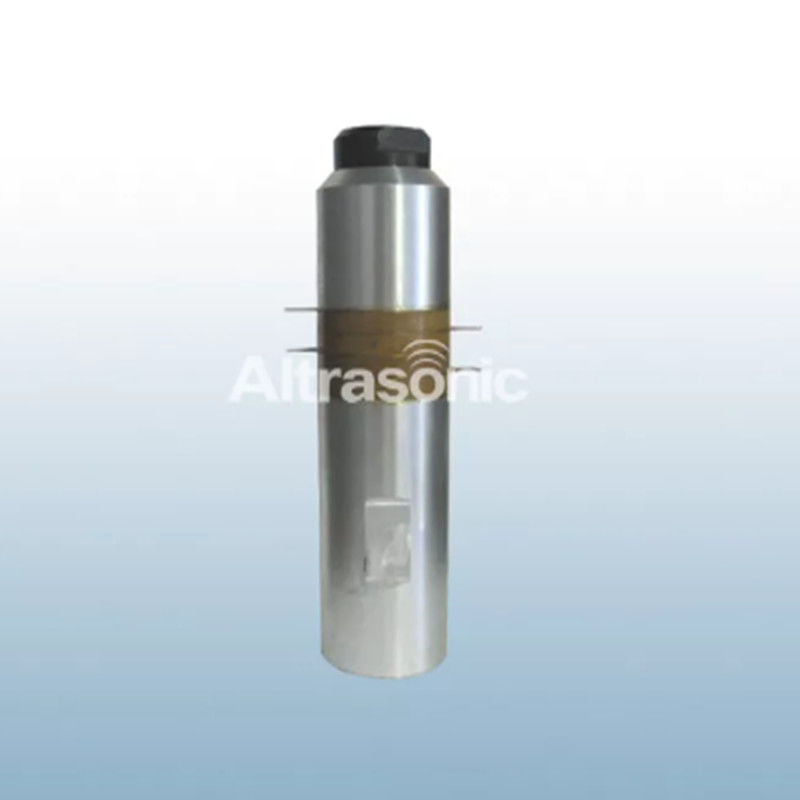

Large Image :  5015-4z Ultrasonic Welding Transducer For Nonwoven Medical Grade Face Mask Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5015-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Model Number: HS-5015-4Z Frequency: 15k
Max Amplitude: 12um Input Power: 1500W
Certification: CE Qty Of Ceramic: 4
Bran: Altrasonic Place Of Original: Zhejiang,China

1500w 5015-4Z Ultrasonic Welding Transducer for nonwoven mask machine

Description:
There are two types of ultrasonic welding: ultrasonic metal welding and ultrasonic plastic welding. Among them, ultrasonic plastic welding technology has been widely used. It uses the ultrasonic vibration generated by the transducer to transmit the ultrasonic vibration energy to the welding area through the upper welding piece. Due to the large acoustic resistance at the welding zone, that is, the junction between the two weldments, local high temperatures will cause the plastic to melt and complete the welding work under the action of contact pressure. Ultrasonic plastic welding can facilitate the welding of parts that cannot be welded by other welding methods. In addition, it also saves expensive mold costs for plastic products, shortens processing time, improves production efficiency, and is economical, fast, and reliable.


Trial and commissioning instructions
The matching of the transducer with the electric box and the mold is the basis for system reliability and the use of the power of the transducer. After the transducer is completed, there are no adjustable parts. Adjust the electrical box and mold to match the working state of the transducer.


Specifications:


ModelHS-5015-4Z
Frequency15khz
Output power1500watt
Joint boltM18*1.5
Ceramic disc Diameter50 mm
Quantity of Ceramic discs4 pcs
Capacitance12~13nf
Amplitude12um
ApplicationWelding





Application :

The applications of ultrasound are extensive and are found in many industries including electrical and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding thermoplastics. It is fast and easily automated with weld times often below one second and there is no ventilation system required to remove heat or exhaust.



Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation
